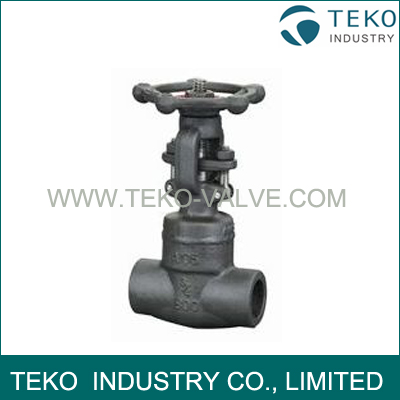

Welded Bonnet Forged Steel Gate Valve
Welded Bonnet Forged Steel Gate Valve
- Availability: In Stock
- Product Model: Z61H
$0.00
Ex Tax: $0.00
Welded Bonnet Forged Steel Gate Valve
Technical Data:
1)Material:A105, LF2, SS304, SS316, SS304L, SS316L, F11, F22
2)Size rating:NPS 3/8"~2"
3)Working Pressure:Class900Lb~2500Lb
4)Design Standard:API 602
5)Weld End: As per ASME B 16.11
6)Test Standard:API598
Material List:
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 430&410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Gasket | Corrugated SS+graphite | SS+PTFE | ||
| 6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 7 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 8 | Pin | A276 420 | A182 F304 | ||
| 9 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 10 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 11 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 12 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 420 | |||
| 14 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Nameplate | SS | |||
| 16 | Handwheel | A197 | |||
| 17 | Bearing Gasket | A473 431 | |||
| 18 | Stem Packing | Flexible Graphite | PTFE | ||
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH2OOH etc | ||
| Suitable Temperature | -29~425 | -29~550 | -29~180 | ||
