2"-36" Wafer Check Valve Single Disk Spring Loaded High CV Lift Type
- Availability: In Stock
- Product Model: H76H

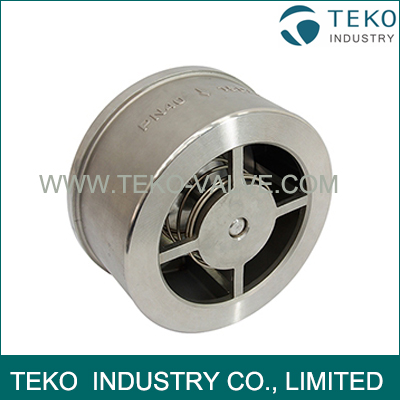

Single Disk Spring Loaded Stainless Steel High CV Lift Type Wafer Check Valve
Description
It is a casted Wafer Check valve, full bore, disc type, spring return, vertical or horizontal mounting, manufactured for flanges according ANSI or DIN standard.
|
Product Name |
Cast Steel Single Disc Wafer Type Check Valve |
|
1. Material |
WCB/CF8/CF8M |
|
2. Size |
1/2"-10"(DN15-DN250) |
|
3. Port |
Full Port |
|
4. Working Pressure |
PN16~PN40 |
|
5. Connection Ends |
Wafer |
|
6. Working Temp. |
-29ºC~350ºC |
|
7. Suitable Medium |
Water, Natural Gas, Oil and some corrosive liquid |
|
8. Seal |
Metal |
|
9. Locking |
Optional |
|
Shipment |
|
|
Delivery Time |
15~20 Days |
|
Package |
Standard Exporting Plywood Case |
|
Payment Terms |
T/T, Western Union, PayPal, etc. |
|
|
30% prepayment, 70% balance paid before shipping or against copy of BL |
Specifications
- Simple structures and small dimensions
- For direct assembly between flanges in accordance with ASME or DIN
- No maintenance
- Light weight
- Full bore (FB)
- Spring loaded
- Metal to metal or resilient seal
Features
- Size: from ND 15 (½”) to ND 300 (12”)
- Pressure: PN 6/ 10/ 16/ 25, /40, ANSI150/ 300/ 600/ 900
- Material: A105, AISI304, AISI316, Bronze.
- Sealed: metal-metal, NBR, EPDM, Viton, PTFE
- Distance between flanges: EN558
- Connected in accordance with standard: EN-1092-1 B1
- Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
- Working temperature: from -50ºC to 350ºC (depending on the seal and spring material)
