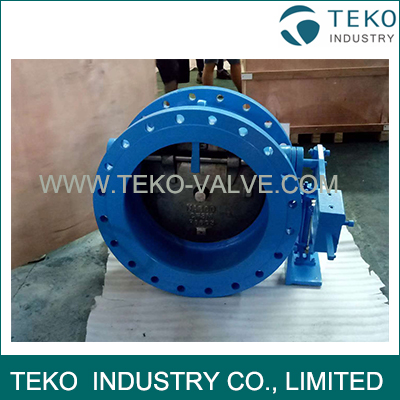

Ductile Iron Silent Tilted Disc Wafer Check Valve With Hydraulic Damper No Water Hammer

No Water Hamer Ductile Iron Silent Tilted Disc Check Valve With Hydraulic Damper

Desciptions

The TEKO tilted disc check valve is a development of the traditional type swing check valve that has been designed to allow for frequent flow reversals without causing wear in shaft seat which is a common feature of the swing check.

The compact body to the tilting disc saves space during installation so that reducing the construction cost. The disc is pivoted in the upper one third of the valve body; hence the disc eccentricity is much smaller than that of the conventional swing check. Due to the shorter distance travelled by the disc the tilting check valve closes faster and reduce the slam and water hammer.

Applicable Standards

Face-to-face: EN558

Flange end: EN1092-2

Top flange EN ISO5211

Hydrostatic testing: API598

Applications

Pump and water pipeline protection with controlled closing

Tank filling

Advantages

Compact design which requires small space

Flexible design allowing maintenance of counterweight and or hydraulic damper

Stable operation where the flow is allowed to pass on both sides of the disc

Lower operating torques and long life seals due to its double eccentric design.

Material List
