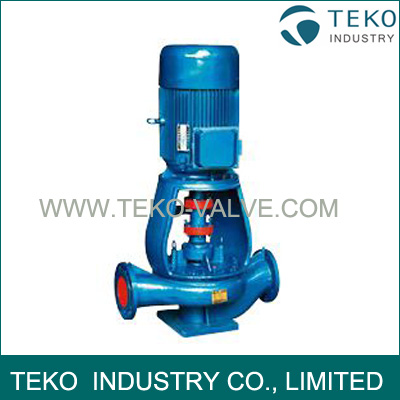

ALGB Type Vertical Centrifugal Pump

Specifications:

Flow Rate Range: 5.3-2000m3/h
Head Range: 1-133m
Operation Temperature: -15℃-120℃
Matched Power: 0.37-250KW
Working Pressure: ≤1.6MPa
Flow-through Material: Cast Iron, Stainless Steel

Technical Parameters:

Write a review

Note: HTML is not translated!
Bad Good
This is the sticky Notification module. You can use it for any message such as cookie notices, special promotions, or any other important text.
Model No. Capacity(m³) Head（m） Efficiency(η) Speed (r/min) Power (kw) NPSH(r)
(m3/h) (L/S)
40ALGB-10 3.9 1.08 10.6 52 2900 0.37 2.3
5.6 1.56 10
7.4 2.06 9
40ALGB-12.5 4.4 1.22 13.2 48 2900 0.55 2.3
6.3 1.75 12.5 54
8.3 2.31 11.3 53
40ALGB-16 3.9 1.08 17.6 40 2900 0.75 2.3
5.6 1.56 16 45
7.4 2.06 14.4 41
40ALGB-20 4.4 1.22 21 41 2900 1.1 2.3
6.3 1.75 20 46
8.3 2.31 18 43
40ALGB-24 3.8 1.06 25.5 34 2900 1.1 2.3
5.5 1.53 24 38
7.2 2 22.5 37
40ALGB-28 4.1 1.14 29 34 2900 1.5 2.3
5.9 1.64 28 39
7.8 2.17 26.3 39
40ALGB-32 4.4 1.22 23 29 2900 2.2 2.3
6.3 1.75 32
8.3 2.31 30
40ALGB-36 3.7 1.03 38 20 2900 2.2 2.3
5.3 1.47 36 31
7 1.94 34.5 30
40ALGB-44 4.1 1.14 45 26 2900 3 2.3
5.9 1.64 44 33
7.8 2.17 42 32
40ALGB-50 4.4 1.22 51 23 2900 4 2.3
6.3 1.75 50 27
8.3 2.31 48 26
40ALGB-60 3.8 1.06 61.5 24 2900 4 2.3
5.5 1.53 60 28
7.2 2 56 28
40ALGB-70 4.1 1.14 72 60 2900 5.5 2.3
5.9 1.64 70
7.8 2.17 65
40ALGB-80 4.4 1.22 82 55 2900 7.5 2.3
6.3 1.75 80 62
8.3 2.31 74 60
40ALGB-10(I) 8 2.22 10.6 60 2900 0.75 2.3
11 3.05 10
14.5 4.03 9
40ALGB-12.5(I) 8.8 2.44 13.2 55 2900 1.1 2.3
12.5 3.47 12.5 62
16.3 4.53 11.3 60
40ALGB-16(I) 8 8.8 17 57 2900 1.1 2.3
11 12.5 16
14.5 16.3 14
40ALGB-20(I) 8.8 2.44 21.5 49 2900 1.5 2.3
12.5 3.47 20 58
16.3 4.53 17.8 57
40ALGB-24(I) 7.3 2.38 26 50 2900 1.5 2.3
10.4 2.89 24 50
13.5 3.75 20 50
40ALGB-28(I) 8.2 2.28 29 44 2900 2.2 2.3
11.7 3.25 28 51
15.2 4.22 26 50
40ALGB-32(I) 8.8 2.44 33 45 2900 3 2.3
12.5 3.47 32 52
16.3 4.53 30 51
40ALGB-36(I) 7.5 2.08 37 44 2900 3 2.3
10.6 2.94 36 44
13.8 3.83 34 44
40ALGB-44(I) 8.3 2.31 45 37 2900 4 2.3
11.7 3.25 44 46
15.3 4.22 42 45
40ALGB-50(I) 8.8 2.44 51.2 38 2900 5.5 2.3
12.5 3.47 50 46
16.3 4.53 48 46
40ALGB-60(I) 7.6 2.11 61.4 37 2900 7.5 2.3
10.8 3 60 37
14 3.89 58 37
40ALGB-70(I) 8.2 2.28 71 38 2900
