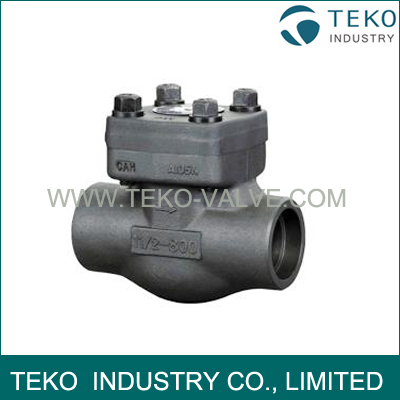

Swing Type Forged Check Valve
Swing Type Forged Check Valve
- Availability: In Stock
- Product Model: H64H, H44H
$0.00
Ex Tax: $0.00
Swing Type Forged Check Valve
Technical Data:
1)Material:A105, LF2, SS304, SS316, SS304L, SS316L, F11, F22
2)Size rating:NPS 1/2"~2"
3)Working Pressure:Class150Lb~2500Lb
4)Design Standard:API 602
5)Weld End: As per ASME B 16.11, Flange As Per ASME B16.5
6)Test Standard:API598
Material List:
| NO. | Part Name | CStoASTM | AStoASTM | SStoASTM | |
| A105 | F22 | F304（L） | F316（L） | ||
| 1 | Body | A105 | A182F22 | A182F304（L） | A182F316（L） |
| 2 | Seat | A276 410 | A276 304 | A276F304（L） | A276F316（L） |
| 3 | Disc | A276 420 | A276 304 | A276F304（L） | A27F316（L） |
| 4 | Bolt | A1942H | A1944 | A1948 | A1948M |
| 5 | Hinge | A105 | A182F22 | A182F304（L） | A182F316（L） |
| 6 | Gasket | 316+Graphtie | 316+PTFE | ||
| 7 | Bonnet | A105 | A182F22 | A182F304（L） | A182 F316（L） |
| 8 | Nut | A193 B7 | A193B16 | A193B8（M） | A193B8（M） |
| 9 | Pin | A276 420 | A182F304 | A182F316 | |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29~425 | -29~550 | -29~180 | ||
Dimensions & Weights
| NPS | 3/8” | 1/2” | 3/4” | 1” | 11/4" | 11/2" | 2" | |
| L | 800LB | 79 | 79 | 92 | 111 | 120 | 120 | 140 |
| 900LB～1500LB | 92 | 111 | 111 | 120 | 120 | 140 | 178 | |
| W | 800LB | 61 | 61 | 78 | 84 | 101 | 120 | 133 |
| 900LB～1500LB | 79 | 79 | 79 | 97 | 105 | 120 | 140 | |
| Weight | 800LB | 1.1 | 1 | 1.9 | 3.9 | 4.5 | 7.3 | 10 |
| 900LB～1500LB | 3.1 | 3 | 3.6 | 4.3 | 6.1 | 8.8 | 12.6 | |
