Stainless Steel Multi Stage Centrifugal Water Pump
Stainless Steel Multi Stage Centrifugal Water Pump
- Availability: In Stock
- Product Model: CDLF
$0.00
Ex Tax: $0.00

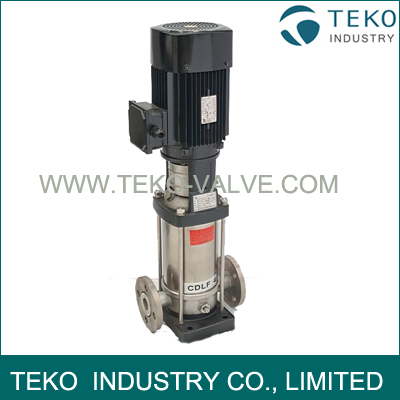

CDLF Stainless Steel Multi Stage Centrifugal Water Pump
Specification:
Flow Rate Range:6-280m3/h
Head Range: 24-240m
Operation Temperature:-15℃-120℃
Matched Power: 1.5-280KW
Working Pressure:≤2.5MPa
Flow-through Material: Cast Iron
Technical Parameters:

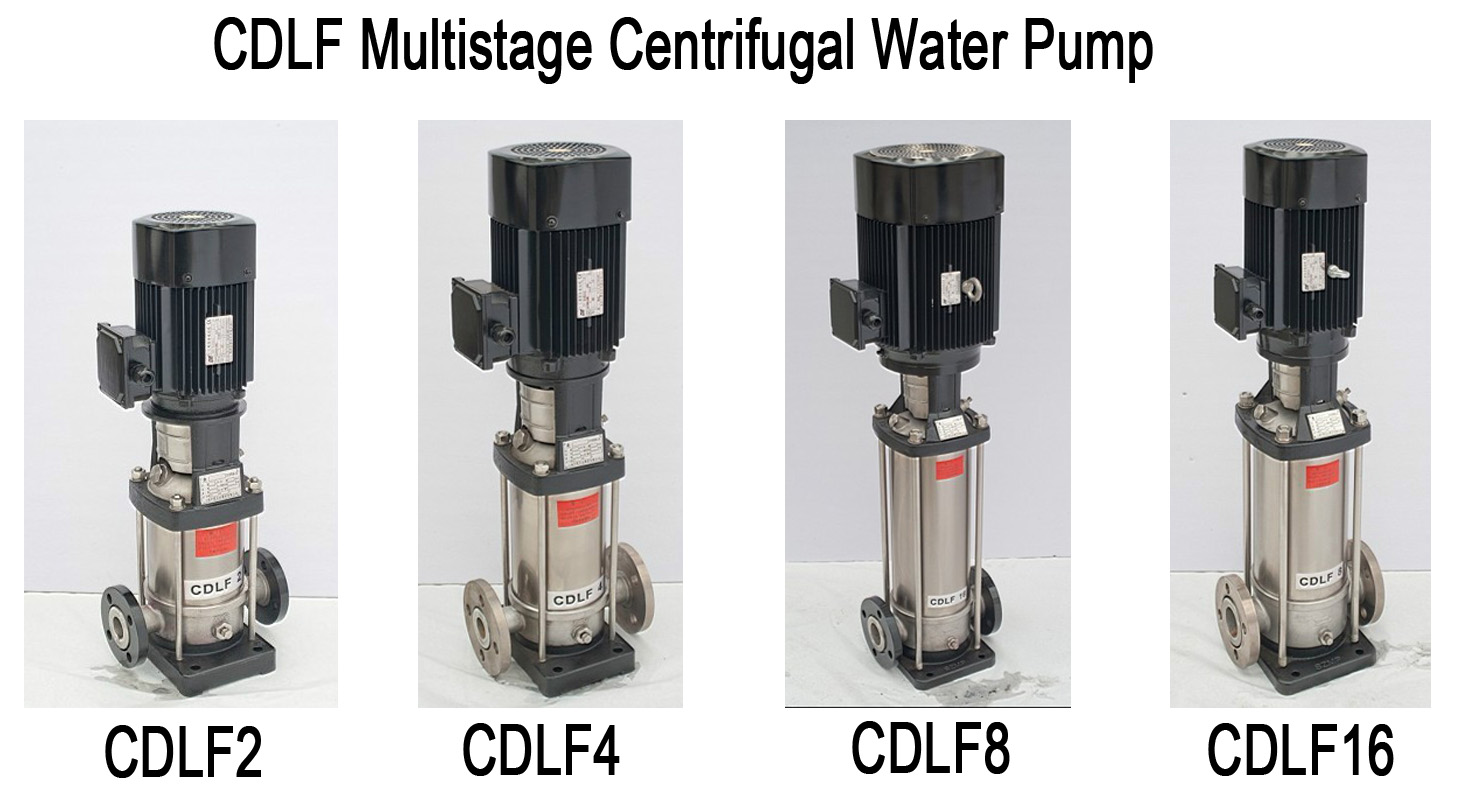

CDLF2
| Model No. | Capacity (m3/h) |
Head (m) |
Power (KW) |
| CDLF2-2 | 2 | 15 | 0.37 |
| CDLF2-3 | 2 | 22 | 0.37 |
| CDLF2-4 | 2 | 30 | 0.55 |
| CDLF2-5 | 2 | 37 | 0.55 |
| CDLF2-6 | 2 | 45 | 0.75 |
| CDLF2-7 | 2 | 52 | 0.75 |
| CDLF2-8 | 2 | 59 | 1.1 |
| CDLF2-9 | 2 | 67 | 1.1 |
| CDLF2-10 | 2 | 74 | 1.1 |
| CDLF2-11 | 2 | 82 | 1.1 |
| CDLF2-12 | 2 | 90 | 1.5 |
| CDLF2-13 | 2 | 98 | 1.5 |
| CDLF2-14 | 2 | 105 | 1.5 |
| CDLF2-15 | 2 | 112 | 1.5 |
| CDLF2-16 | 2 | 120 | 2.2 |
| CDLF2-17 | 2 | 128 | 2.2 |
| CDLF2-18 | 2 | 136 | 2.2 |
| CDLF2-19 | 2 | 143 | 2.2 |
| CDLF2-20 | 2 | 150 | 2.2 |
| CDLF2-21 | 2 | 157 | 2.2 |
| CDLF2-22 | 2 | 165 | 2.2 |
| CDLF2-23 | 2 | 173 | 3.0 |
| CDLF2-24 | 2 | 181 | 3.0 |
| CDLF2-25 | 2 | 189 | 3.0 |
| CDLF2-26 | 2 | 198 | 3.0 |
Images:
