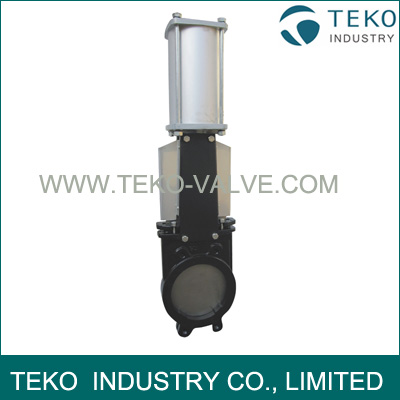

Soft Seal Knife Gate Valve, Bi-directional Zero-leakage Shut-off
Specifications
Pressure rate:PN10
Size:DN50-DN1200
Body Mateiral: Ductile iron-GG40
Operated Type:Handwheel, Pneumatic, bevel gear, electric actuated
Drawing & Dimensions

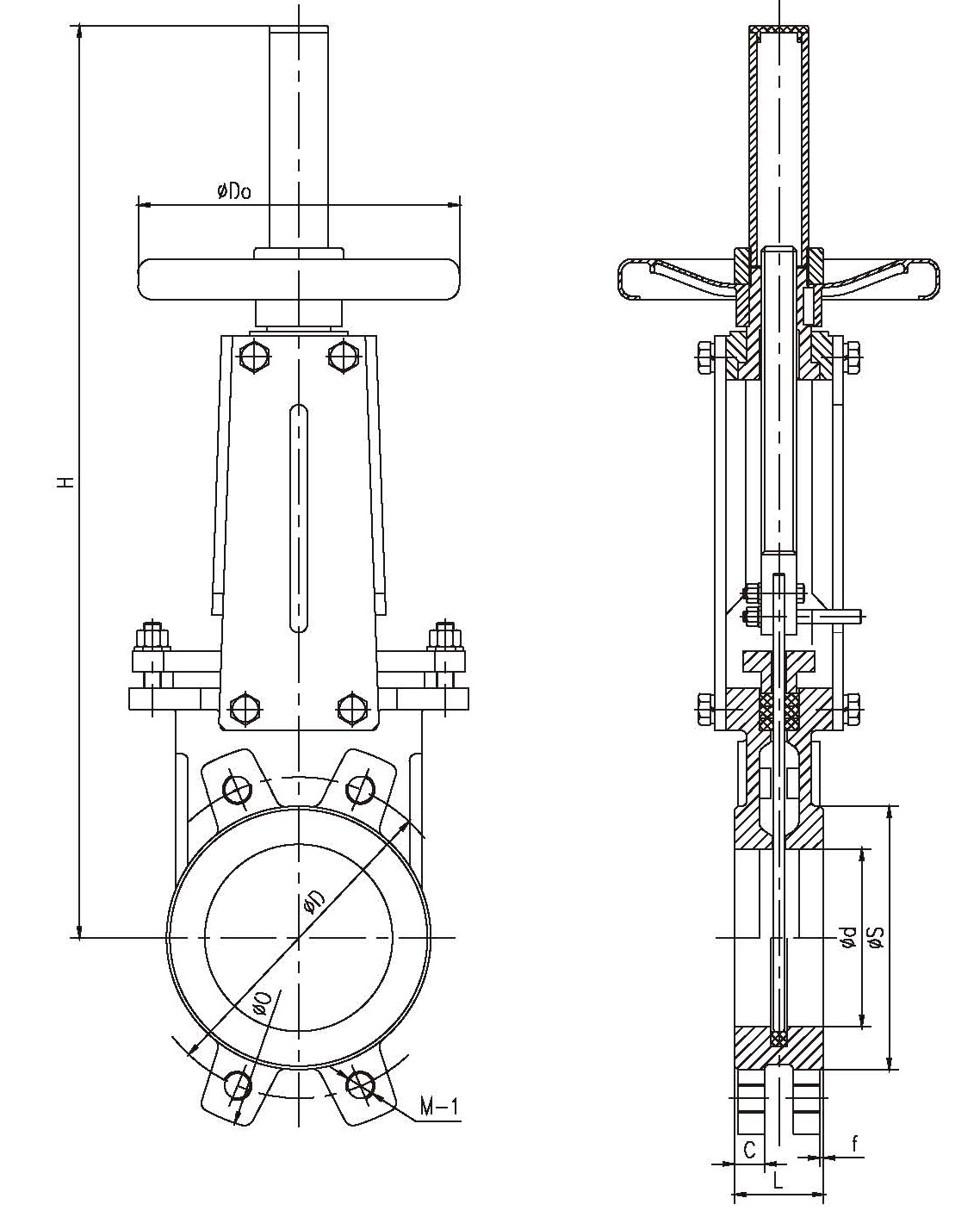

Handwheel Operated
-Drwaing.jpg)
|
DN |
L |
O |
D |
S |
C |
f |
M-1 |
B |
H |
Do |
Weight (KGS) |
|
50 |
40 |
165 |
125 |
95 |
16 |
2 |
4-M16 |
136 |
375 |
180 |
7 |
|
65 |
40 |
185 |
145 |
110 |
16 |
2 |
4-M16 |
151 |
420 |
180 |
8 |
|
80 |
50 |
200 |
160 |
127 |
17 |
2 |
8-M16 |
170 |
450 |
200 |
11 |
|
100 |
50 |
220 |
180 |
148 |
17 |
2 |
8-M16 |
190 |
512 |
200 |
12 |
|
125 |
50 |
250 |
210 |
174 |
17 |
2 |
8-M16 |
212 |
570 |
220 |
15 |
|
150 |
60 |
285 |
240 |
199 |
21 |
2 |
8-M20 |
230 |
665 |
250 |
21 |
|
200 |
60 |
340 |
295 |
250 |
21 |
2 |
8-M20 |
286 |
825 |
300 |
29 |
|
250 |
70 |
395 |
350 |
308 |
24 |
2 |
12-M20 |
338 |
1000 |
350 |
46 |
|
300 |
70 |
445 |
400 |
360 |
24 |
2 |
12-M20 |
388 |
1155 |
350 |
66 |
|
350 |
96 |
505 |
460 |
416 |
33 |
2 |
16-M20 |
460 |
1310 |
400 |
92 |
|
400 |
100 |
565 |
515 |
466 |
35 |
2 |
16-M24 |
520 |
1475 |
500 |
125 |

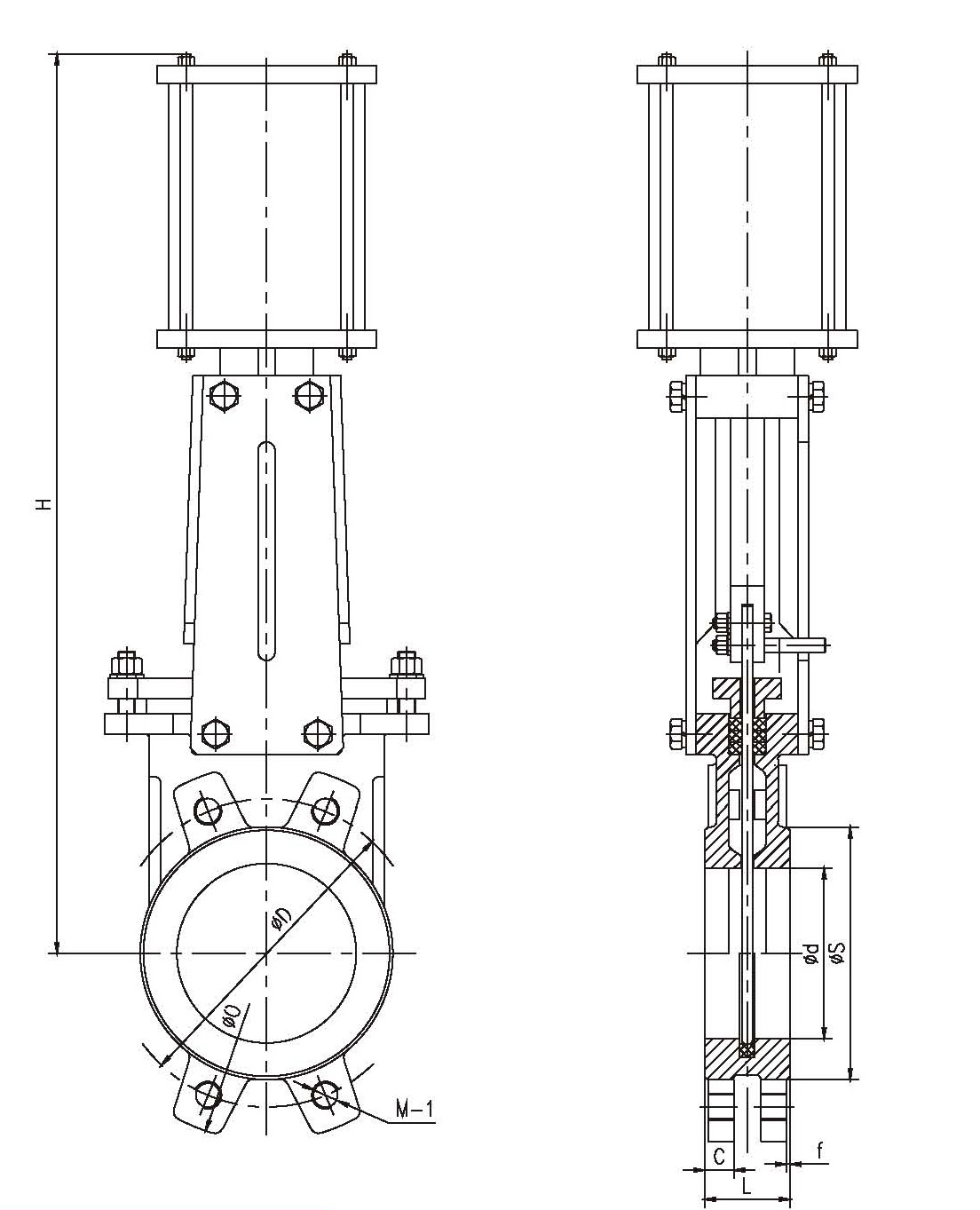

Pneumaitc Actuated
-Drawing.jpg)
|
DN |
L |
O |
D |
S |
C |
f |
M-1 |
B |
H |
Weight (KGS) |
|
50 |
40 |
165 |
125 |
95 |
16 |
2 |
4-M16 |
136 |
430 |
7 |
|
65 |
40 |
185 |
145 |
110 |
16 |
2 |
4-M16 |
151 |
460 |
9 |
|
80 |
50 |
200 |
160 |
127 |
17 |
2 |
8-M16 |
170 |
510 |
12 |
|
100 |
50 |
220 |
180 |
148 |
17 |
2 |
8-M16 |
190 |
570 |
14 |
|
125 |
50 |
250 |
210 |
174 |
17 |
2 |
8-M16 |
212 |
660 |
22 |
|
150 |
60 |
285 |
240 |
199 |
21 |
2 |
8-M20 |
230 |
720 |
25 |
|
200 |
60 |
340 |
295 |
250 |
21 |
2 |
8-M20 |
286 |
890 |
38 |
|
250 |
70 |
395 |
350 |
308 |
24 |
2 |
12-M20 |
338 |
1120 |
65 |
|
300 |
70 |
445 |
400 |
360 |
24 |
2 |
12-M20 |
388 |
1230 |
77 |
|
350 |
96 |
505 |
460 |
416 |
33 |
2 |
16-M20 |
460 |
1370 |
195 |
|
400 |
100 |
565 |
515 |
466 |
35 |
2 |
16-M24 |
520 |
1570 |
240 |
|
450 |
106 |
615 |
565 |
525 |
36 |
2 |
20-M24 |
585 |
1720 |
306 |
|
500 |
110 |
670 |
620 |
584 |
37 |
2 |
20-M24 |
635 |
1850 |
365 |
|
600 |
110 |
780 |
725 |
664 |
37 |
2 |
20-M27 |
720 |
2150 |
420 |
Bevel Gear
-Drawing.jpg)
|
DN |
L |
O |
D |
S |
C |
f |
M-1 |
B |
H |
|
450 |
106 |
615 |
565 |
525 |
36 |
2 |
20-M24 |
585 |
1170 |
|
500 |
110 |
670 |
620 |
574 |
37 |
2 |
20-M24 |
635 |
1280 |
|
600 |
110 |
780 |
725 |
664 |
37 |
2 |
20-M27 |
720 |
1485 |
|
700 |
110 |
895 |
840 |
1070 |
38 |
2 |
24-M27 |
807 |
1670 |
|
800 |
110 |
1015 |
950 |
955 |
38 |
2 |
24-M30 |
922 |
1880 |
|
900 |
110 |
1115 |
1050 |
955 |
38 |
2 |
28-M30 |
1030 |
2120 |
|
1000 |
110 |
1230 |
1160 |
1080 |
38 |
2 |
28-M33 |
1140 |
2270 |
