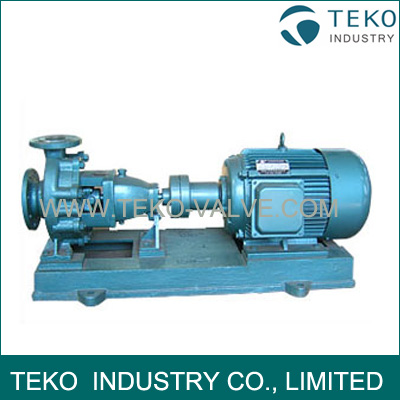

IS Model Single Stage Centrifugal Pump

Specifications:

Flow Rate Range: 6.3-460m3/h
Head Range: 4.1-132m
Operation Temperature: -20℃-120℃
Matched Power: 0.55-110KW
Working Pressure: ≤1.6MPa
Flow-through Material: Cast Iron

Technical Parameters:

No. Model No. Speed
(r/min)		 Capacity Head  (m) Effi.
(%)		 Power
(KW)		 (NPSH)r
m3/h L/s
1 50-32-IS-125 2900 12.5 3.47 20 51 2.2 2
2 1450 6.3 1.75 5 45 0.55 2
3 50-32-IS-125A 2900 11.3 3.14 16.4 50 1.5 2
4 1450 5.7 1.58 4.1 43 0.55 2
5 50-32-IS-160 2900 12.5 3.47 32 46 3 2
6 1450 6.3 1.75 8 40 0.55 2
7 50-32-IS-160A 2900 11.3 3.14 26.4 44 3 2
8 1450 5.7 1.58 6.6 37.1 0.55 2
9 50-32-IS-200 2900 12.5 3.47 50 39 5.5 2
10 1450 6.3 1.75 12.5 33 1.1 2
11 50-32-IS-200A 2900 11.3 3.14 41 38 4 2
12 1450 5.7 1.58 10.3 31 0.75 2
13 50-32-IS-250 2900 12.5 3.47 80 33 11 2
14 1450 6.3 1.75 20 27 2.2 2
15 50-32-IS-250A 2900 11.7 3.25 70 32 11 2
16 1450 5.9 1.64 17.5 25 1.5 2
17 50-32-IS-250B 2900 11 3.06 62 30 7.5 2
18 65-50-IS-125 2900 25 6.94 20 62 3 2
19 1450 12.5 3.47 5 55 0.55 2
20 65-50-IS-125A 2900 22.7 6.31 16.5 61 2.2 2
21 1450 11.3 3.14 4.1 54 0.55 2
22 65-50-IS-160 2900 25 6.94 32 57 5.5 2
23 1450 12.5 3.47 8 51 0.75 2
24 65-50-IS-160A 2900 22.7 6.31 26.5 56 4 2
25 1450 11.3 3.14 6.6 49.6 0.55 2
26 65-40-IS-200 2900 25 6.94 50 52 11 2
27 1450 12.5 3.47 12.5 46 1.5 2
28 65-40-IS-200A 2900 22.7 6.31 41 50 7.5 2
29 1450 11.3 3.14 10.3 44 1.1 2
30 65-40-IS-250 2900 25 6.94 80 46 15 2
31 1450 12.5 3.47 20 39 3 2
32 65-40-IS-250A 2900 23.4 6.5 74.8 45 15 2
33 1450 11.7 3.25 17.5 37.9 2.2 2
34 65-40-IS-250B 2900 22 6.11 61.8 44 11 2
35 65-40-IS-315 2900 25 6.94 125 39 30 2
36 1450 12.5 3.47 32 33 5.5 2
