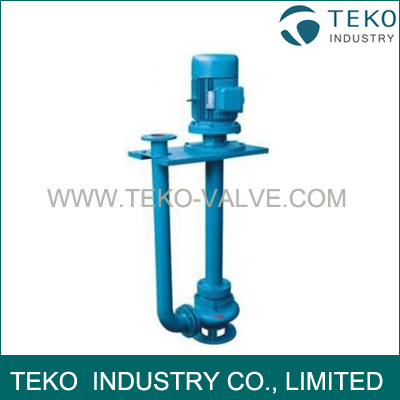

Vertical Dirty Water Submerged Pump

Features of Submerged Pump:

1.Adopt big flow non-clock hydraulic parts designation; improving the ability greatly to discharge fiber that has diameter 5 times of that of pump inlet or solid particle that diameter is 50% of that of pump inlet.
2.Mechanical seals adopt in-series seal, which is made of the hard quality wear-resisting carbonization tungsten, having characteristics of being durable and wear resisting. These ensure the pump running for more than 8000 hours in succession safely.
3.Can be equipped with automatic control box according to the needs of user, controls the starting and stopping of the pump automatically in accordance with the water level changing, no need to guard it.
4. Vertical structure, because the pump body is submerged in the liquid, it is easy to start, no need to exhaust and does not leak. The depth can be 0.5 to 7 meters under the liquid.
5. Pump and motor are jointed by coupling, pump axle is short in size, guarantee the pump running steadily and safely.

Specifications:

1.Flow rate up to 1500 m3/h
2.Delivery head up to 60m
3.Power up to 160kw
   Single-phase power supply if request
   Three-phase power supply if request.
4.Suitable Medium: Sewage, Slurry etc.
5.Suitable TEMP:-15°C ~60°C
6.Hard Alloy Mechanical Seal

Material:

Casing:Cast Iron/Stainless Steel
Impeller: Cast iron/Stainless Steel

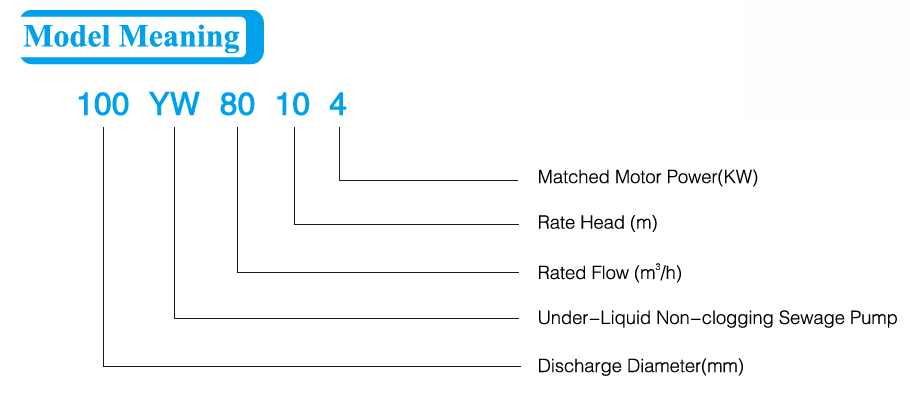

Model Meaning:

Technical Parameters:


Caliber (mm) Capacity（m3/h） Head（m） Speed（r/min） Power（kw） Efficiency（%）
25 8 22 2825 1.1 38.1
32 12 15 2825 1.1 40
40 15 15 2840 1.5 45.1
40 15 30 2840 2.2 18
50 20 7 1390 0.75 54
50 10 10 1390 0.75 56
50 20 15 2840 1.5 55
50 15 25 2840 2.2 56
50 18 30 2880 3 58
50 25 32 2900 5.5 53
50 20 40 2900 7.5 55
65 25 15 2840 2.2 52
65 37 13 2880 3 55
65 25 30 2890 4 58
65 30 40 2900 7.5 56
65 35 50 2930 11 60
65 35 60 2930 15 63
80 40 7 1420 2.2 52
80 43 13 2880 3 50
80 40 15 2890 4 57
80 65 25 2900 7.5 56
100 80 10 1440 4 62
100 110 10 1440 5.5 66
100 100 15 1440 7.5 67
100 85 20 1400 7.5 68
100 100 25 1460 11 65
100 100 30 1470 15 66
100 100 35 1460 18.5 65
125 130 15 1460 11 62
125 130 20 1440 15 63
150 145 6 1470 7.5 63
150 180 15 1470 15 65
150 180 20 1470 18.5 75
150 180 25 1470 22 76
150 130 30 1470 22 75
150 180 30 970 30 73
150 200 30 970 37 70
200 300 7 1470 11 73
200 250 11 1470 15 74
200 400 10 1470 22 76
200 400 13 1470 30 73
200 250 15 1470 18.5 72
200 300 15 1470 22 73
200 250 22 1470 30 71
200 350 25 1470 37 75
200 400 30 1480 55 70
250 600 9 980 30 74
250 600 12 1480 37 78
250 600 15 1480 45 75
250 600 20 1480 55 73
250 600 25 1480 75 73
300 800 12 1480 45 76
300 500 15 980 45 70
300 800 15 980 55 73
300 600 20 980 55 75
300 800 20 980 75 78
300 950 20 980 90 80
300 1000 25 980 110 82
300 1100 10 980 55 84.5
350 1500 15 980 90 83.1
350 1200 18 980 90 83.2
350 1100 28 740 132 78.5
350 1000 36 740 160 82.1
