Submersible Sewage Pump
Submersible Sewage Pump
- Availability: In Stock
- Product Model: WQ
$0.00
Ex Tax: $0.00

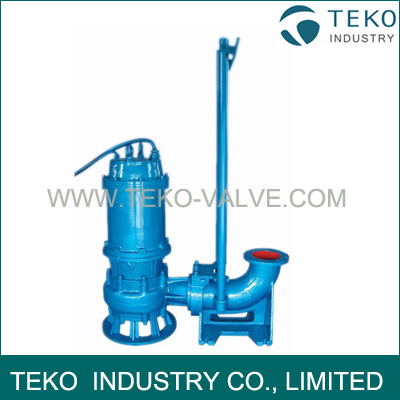

WQ Model Submersible Sewage Pump
Specification:
Flow: 8-4000m3/h
Head: 5-60m
Power: 0.75-250kw
Rotary Speed:580-2900r/min
Temperature Range: ≤60.
Material: cast iron or stainless steel
warranty: one year .
Material of Submersible Sewage Pump
Impeller:Cast Iron/Stainless Steel
Body: Cast iron/Stainless Steel
Motor Frame:Cast iron/Stainless Steel

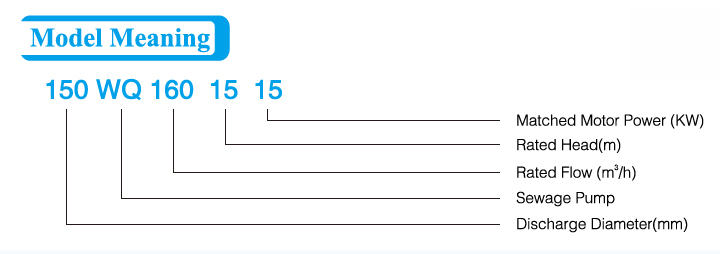

Model Meaning:
Technical Parameters
| Model No. | Caliber | Capacity | Head | Power | Speed | Eff. |
| mm | m3/h | m | KW | r/min | % | |
| 25WQ-22-1.1 | 25 | 8 | 22 | 1.1 | 2900 | 38.5 |
| 32WQ-15-1.1 | 32 | 12 | 15 | 1.1 | 2900 | 40 |
| 40WQ-15-1.5 | 40 | 15 | 15 | 1.5 | 2900 | 45.1 |
| 40WQ-30-2.2 | 40 | 15 | 30 | 2.2 | 2900 | 48 |
| 50WQ-7-0.75 | 50 | 20 | 7 | 0.75 | 2900 | 54 |
| 50WQ-10-0.75 | 50 | 10 | 10 | 0.75 | 2900 | 56 |
| 50WQ-15-1.5 | 50 | 20 | 15 | 1.5 | 2900 | 55 |
| 50WQ-25-2.2 | 50 | 15 | 25 | 2.2 | 2900 | 56 |
| 50WQ-30-3 | 50 | 18 | 30 | 3 | 2900 | 58 |
| 50WQ-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
| 50WQ-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
| 65WQ-15-2.2 | 65 | 25 | 15 | 2.2 | 2900 | 52 |
| 65WQ-13-3 | 65 | 37 | 13 | 3 | 2900 | 55 |
| 65WQ-30-4 | 65 | 25 | 30 | 4 | 2900 | 58 |
| 65WQ-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
| 65WQ-50-11 | 65 | 35 | 50 | 11 | 2900 | 60 |
| 65WQ-60-15 | 65 | 35 | 60 | 15 | 2900 | 63 |
| 80WQ-7-2.2 | 80 | 40 | 7 | 2.2 | 1450 | 52 |
| 80WQ-13-3 | 80 | 43 | 13 | 3 | 2900 | 50 |
| 80WQ-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 |
| 80WQ-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
| 100WQ-10-4 | 100 | 80 | 10 | 4 | 1450 | 62 |
| 100WQ-10-5.5 | 100 | 110 | 10 | 5.5 | 1450 | 66 |
| 100WQ-15-7.5 | 100 | 100 | 15 | 7.5 | 1450 | 67 |
| 100WQ-20-7.5 | 100 | 85 | 20 | 7.5 | 1450 | 68 |
| 100WQ-25-11 | 100 | 100 | 25 | 11 | 1450 | 65 |
| 100WQ-30-15 | 100 | 100 | 30 | 15 | 1450 | 66 |
| 100WQ-35-18.5 | 100 | 100 | 35 | 18.5 | 1450 | 65 |
| 125WQ-15-11 | 125 | 130 | 15 | 11 | 1450 | 62 |
| 125WQ-20-15 | 125 | 130 | 20 | 15 | 1450 | 63 |
| 150WQ-9-7.5 | 150 | 145 | 9 | 7.5 | 1450 | 63 |
| 150WQ-15-15 | 150 | 180 | 15 | 15 | 1450 | 65 |
| 150WQ-20-18.5 | 150 | 180 | 20 | 18.5 | 1450 | 75 |
| 15WQ-25-22 | 150 | 180 | 25 | 22 | 1450 | 76 |
| 150WQ-30-22 | 150 | 130 | 30 | 22 | 1450 | 75 |
| 150WQ-30-30 | 150 | 180 | 30 | 30 | 1450 | 73 |
| 150WQ-30-37 | 150 | 200 | 30 | 37 | 1450 | 70 |

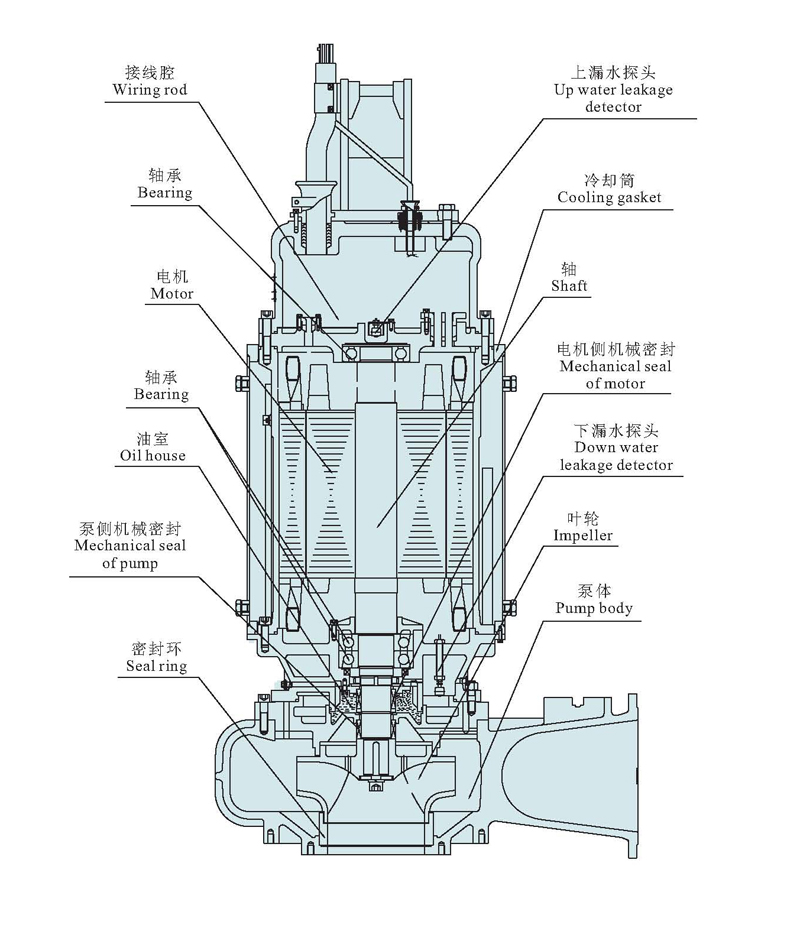

Structure Drawing:

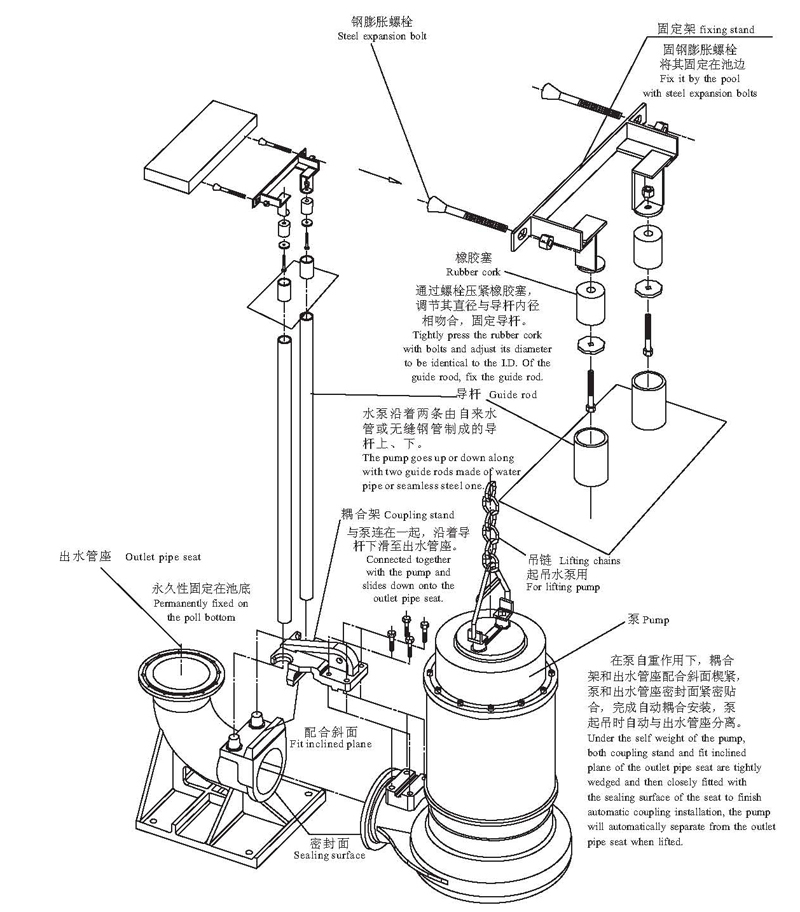

How To install Auto Coupling Device:
