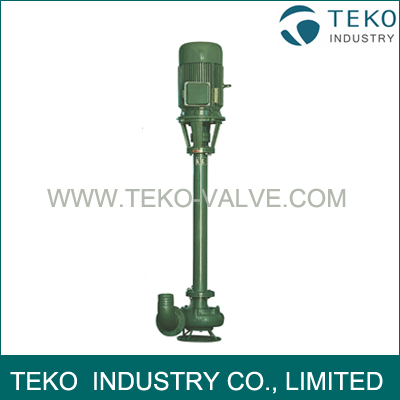

Slurry Sump Pump, Sewage Sump Pump
Specifications:
Flow Rate Range: 8-150m3/h
Head Range: 8-40m
Operation Temperature:-15℃-60℃
Matched Power: 1.5-22KW
Flow-through Material: Cast Iron
Technical Parameters:
| Model No. | Speed (r/min) | Flow (m3/h) | Head (m) | Power (KW) | Weight (kg) | Length of Pump (mm) |
| 50NL-8 | 1450 | 20-30 | 8-9 | 1.5 | 67 | 1330 |
| 50NL-12 | 1450 | 25-38 | 12-14 | 3 | 87 | 1640 |
| 76NL-9 | 1450 | 50-70 | 9-10 | 3 | 92 | 1690 |
| 65NL-16 | 1450 | 50-60 | 15-18 | 5.5 | 148 | 1460 |
| 86NL-12 | 1450 | 80-120 | 11-13 | 7.5 | 163 | 1460 |
| 100NL-16 | 1450 | 80-100 | 15-17 | 15 | 254 | 1550 |
| 150NL-160 | 1450 | 160-200 | 16-18 | 22 | 340 | 1610 |
