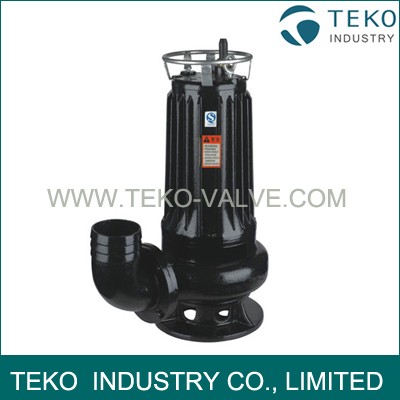

AWQS Shredding Submersible Sewage Pump

Specifications of Shredding Submersible Pump:

Flow Rate Range: 8-210m3/h
Head Range: 7-50m
Operation Temperature: -15℃-60℃
Matched Power: 0.75-55KW
Working Pressure: ≤1.6MPa
Flow-through Material: Cast Iron, Cast Steel, Stainless Steel


Technical Parameters:

Model No. Caliber Capacity Head Power Speed Voltage Current Net weight (kg)
(mm) (m³/h) (m) (kW) (r/min) (V) (A)
WQAS10-7-0.75CB 51 10 7 0.75 3000 380 1.99 30
WQAS15-9-1.1CB 51 15 9 1.1 3000 380 2.74 31
WQAS25-7-1.5CB 64 25 7 1.5 3000 380 3.58 40
WQAS25-10-2.2CB 64 25 10 2.2 3000 380 5.11 43
WQAS42-11-3CB 76 42 11 3 3000 380 6.67 68
WQAS50-10-4CB 76 50 10 4 3000 380, 8.8 70
WQAS65-12-5.5CB 102 65 12 5.5 3000 380 11.7 106
WQAS85-13-7.5CB 102 85 13 7.5 3000 380 15.7 110
WQDAS10-7-0.75CB 50 10 7 0.75 3000 220 - 30
