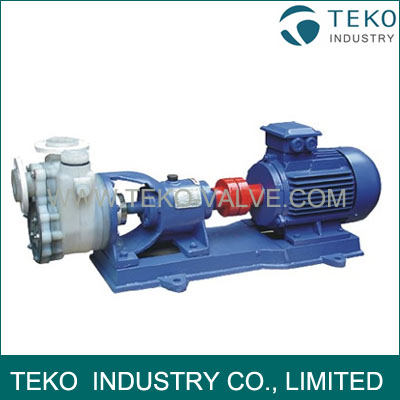

Single-Stage Chemical Pump
- Availability: In Stock
- Product Model: FZB
Single-Stage Chemical Pump
The pump body, pump cover, impeller and the component that contacts the medium are all made of polyvinylidene fluoride or enhanced polyacrylic material. It is manufactured by mould pressing or plastic pouring. The polyvinylindene fluoride plastic has high mechanical intensity and corrosion resistant, is widely used in projects in international scope.
The fluorine Plastic Alloy is applicable to the temperature environment of -50℃～130℃ for transporting all kinds of corrosive medium that doesn't contain solid grain, such as vitriol, hydrochloric acid, nitric acid, ethanoic acid, phosphoric acid, oxalic acid, hydrofluoric acid, alkaline liquid, organic solution, oxidant. It's a power saving pump used to transport the corrosive medium that doesn't contain solid grain of the industrial departments such as chemistry, chlorine and alkali, fertilizer, dyestuff, reagent, pesticide, pharmacy, electroplate.
Specifications:
1. Flow rate up to 110 m3/h
2. Delivery head up to 30.5 m
3. Power up to 15.0 kw 2900 r/min
Volt=380V/50HZ
4. Suitable Medium:hydrochloric acid,Sulfuric acid,Acetic acid,Formic acid etc.
5. Mechanical Seal
Materials:
Casing:Fluorine plastic alloy
Impeller:Fluorine plastic alloy
Shaft: Steel With Fluorine Plastic Alloy Lining
Technical Parameters for Single-Stage Chemical Pump:
| Model No. | Capacity (m3/h) | Head (m) | Inlet (mm) | Outlet (mm) | Power (KW) | Speed (r/min) | Suction Height (m) | Shaft Power (KW) | Eff. (%) |
| 40FZB-25 | 8 | 25 | 40 | 32 | 2.2 | 2900 | 4 | 1.05 | 52 |
| 40FZB-30 | 8 | 30 | 40 | 32 | 3 | 2900 | 4 | 2.2 | 49 |
| 50FZB-25 | 12 | 25 | 50 | 40 | 3 | 2900 | 4 | 2.2 | 50 |
| 50FZB-30 | 12 | 30 | 50 | 40 | 4 | 2900 | 4 | 3.1 | 49 |
| 65FZB-25 | 29 | 25 | 65 | 50 | 5.5 | 2900 | 5.5 | 4.1 | 58 |
| 65FZB-30 | 29 | 30 | 65 | 50 | 7.5 | 2900 | 5.5 | 5.8 | 58.8 |
| 80FZB-25 | 50 | 25 | 80 | 65 | 7.5 | 2900 | 5.5 | 5.8 | 60 |
| 80FZB-30 | 50 | 30 | 80 | 65 | 7.5 | 2900 | 5.5 | 6.2 | 59.9 |
| 100FZB-25 | 100 | 25 | 100 | 80 | 7.5 | 2900 | 4 | 5.8 | 65 |
| 100FZB-30 | 100 | 30 | 100 | 80 | 11 | 2900 | 4 | 8.2 | 67 |
| 100FZB-40 | 100 | 40 | 100 | 80 | 15 | 2900 | 4 | 14.6 | 72 |
Images:
