Reinforced Polypropylene(RPP) Chemical Centrifugal Pump
- Availability: In Stock
- Product Model: FP FPZ
Reinforced Polypropylene(RPP) Chemical Centrifugal Pump
FP、FPZ chemical Pump is a corrosion-resistant energy -saving centrifugal pump. The component that contacts the medium is using the glass fiber reinforced polyproplene from mould under high temperature. The product has the advantages of light, strong, ametabolic, heat resistant and corrosion resistant. On the aspect of corrosion resistant, it can replace the expensive material such as stainless steel, fluorine plastic alloy, and other non-metal materials. Working Temperature: -14~+80 ℃
Specifications:
1. Flow rate up to 50 m3/h
2. Delivery head up to 32 m
3. Power up to 7.5 kw 2900 r/min
Volt=380V/50HZ
Three-phase power supply if request.
Single-phase power supply if request.
4. Suitable Medium:hydrochloric acid,Sulfuric acid,Acetic acid,Formic acid etc.
5. Mechanical Seal
Materials:
Casing:Glass Fiber Reinforced Polypropylene(RPP)
Impeller:Glass Fiber Reinforced Polypropylene(RPP)
Technical Parameters:
| Model No. | Inlet (mm) | Outlet (mm) | Capacity (m3/h) | Head (m) | Suction Height (m) | Speed (r/min) | Voltage (V) | Power (KW) |
| FP20-15-60 | 20 | 15 | 1 | 5 | 3 | 2900 | 380 | 0.12 |
| FP20-20-90 | 20 | 20 | 3 | 6 | 3 | 2900 | 380 | 0.37 |
| FP32-25-100 | 32 | 25 | 5 | 7 | 6 | 2900 | 220 | 0.55 |
| FP32-25-105 | 32 | 25 | 6.3 | 8 | 6 | 2900 | 380 | 0.75 |
| FP32-25-110 | 32 | 25 | 8 | 14 | 6 | 2900 | 380 | 1.1 |
| FP40-32-125 | 40 | 32 | 12.5 | 20 | 6 | 2900 | 380 | 1.5 |
| FP50-40-150 | 50 | 40 | 20 | 25 | 6 | 2900 | 380 | 2.2 |
| FP65-50-150 | 65 | 5 | 25 | 25 | 6 | 2900 | 380 | 4 |
| 50FP-22 | 50 | 40 | 13 | 22 | 6 | 2900 | 380 | 2.2 |
| 65FP-25 | 65 | 50 | 20 | 25 | 6 | 2900 | 380 | 4 |
| 80FP-28 | 80 | 65 | 50 | 28 | 4 | 2900 | 380 | 5.5 |
| 80FP-32 | 80 | 65 | 50 | 32 | 4 | 2900 | 380 | 7.5 |
| 25FPZ-10 (self-priming) | 25 | 25 | 2.5 | 10 | 3 | 2900 | 380 | 0.75 |
| 32FPZ-11 1(self-priming) | 32 | 25 | 3.5 | 11 | 3 | 2900 | 380 | 0.75 |
| 40FPZ-18 (self-priming) | 40 | 32 | 11 | 18 | 4 | 2900 | 380 | 1.5 |
| 50FPZ-20 (self-priming) | 50 | 40 | 13 | 20 | 4 | 2900 | 380 | 2.2 |
| 65FPZ-28 (self-priming) | 65 | 50 | 20 | 25 | 4 | 2900 | 380 | 4 |

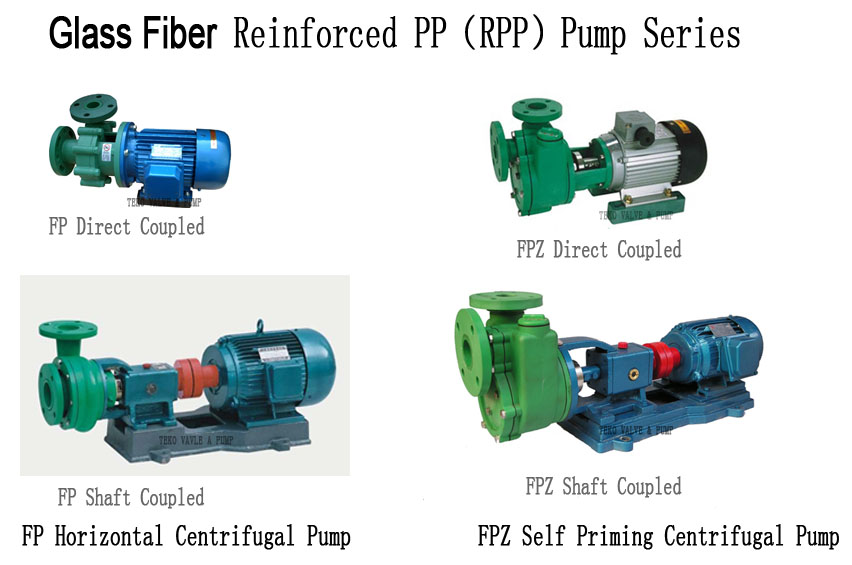

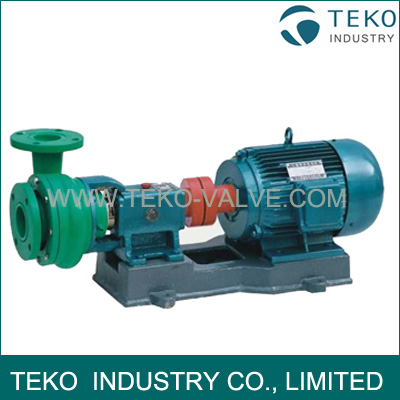

Images:
