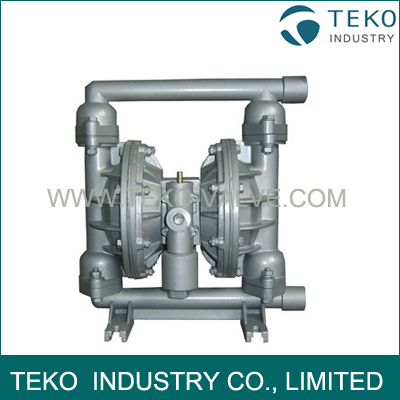

Pneumatic Double Diaphragm Pump
Pneumatic Double Diaphragm Pump
- Availability: In Stock
- Product Model: QBY
$0.00
Ex Tax: $0.00
QBY Pneumatic Double Diaphragm Pump
Specifications:
1. Flow rate up to 40m3/h
2. Delivery head up to 50.0m
3. Suitable Medium:corrosive liquid containing granules,Viscous,volatile,inflammable,explosive or poisonous liquid,procelain slurry,mashed fruit,flue, and so on.
4. Suitable Temperature: Less than 150°C

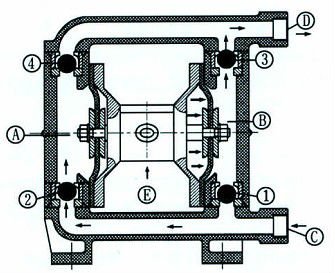

Working Theory:

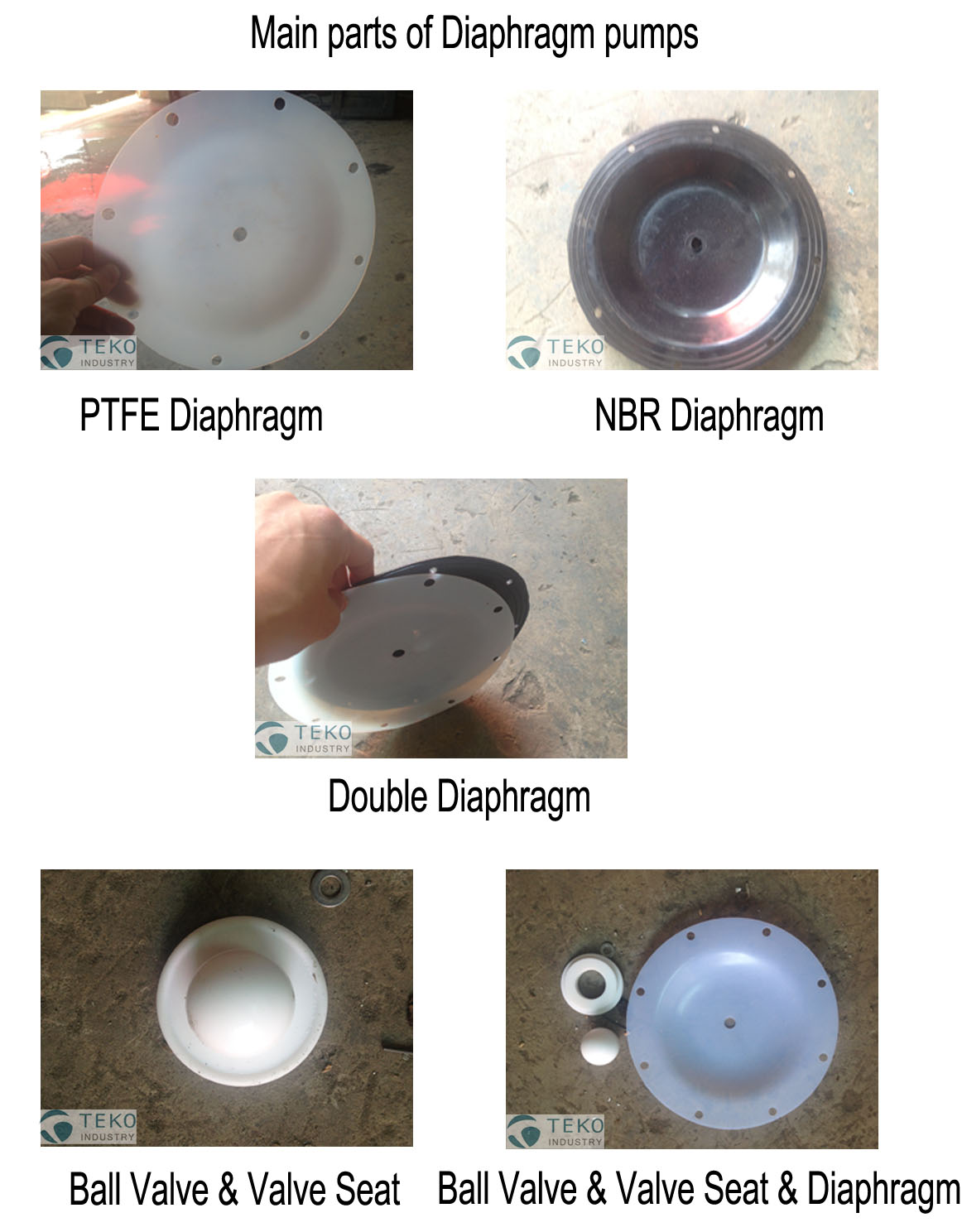

Materials:
Flow-Through:stainless steel ,aluminium alloy and cast iron
Diaphragm:NBR,viton,neoprene or PTEE

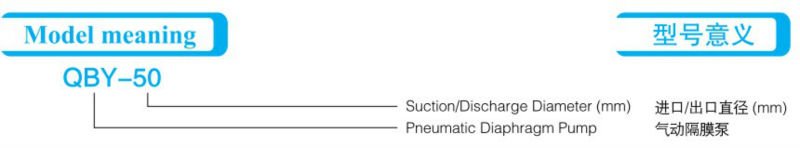

Model Meaning:
Technical Parameters
| Model No. | Capacity | Head | Outlet Pressure | Sunction Lift | Allowable Particle Dia. | Max. Air puressure |
| m3/h | m | kgf/cm2 | m | mm | kbf/cm2 | |
| QBY-10 | 0~0.8 | 0~60 | 6 | 5 | 1 | 7 |
| QBY-15 | 0~1 | 0~60 | 6 | 5 | 1 | 7 |
| QBY-25 | 0~2.4 | 0~60 | 6 | 7 | 2.5 | 7 |
| QBY-40 | 0~8 | 0~60 | 6 | 7 | 4.5 | 7 |
| QBY-50 | 0~12 | 0~60 | 6 | 7 | 8 | 7 |
| QBY-65 | 0~16 | 0~60 | 6 | 7 | 8 | 7 |
| QBY-80 | 0~24 | 0~60 | 6 | 7 | 10 | 7 |
| QBY-100 | 0~30 | 0~60 | 6 | 7 | 10 | 7 |
Images:
