High Temperature Hot Oil Pump, Thermal Oil Pump

High Temperature Hot Oil Pump, Thermal Oil Pump
High Temperature Hot Oil Pump, Thermal Oil Pump
  • Availability: In Stock
  • Product Model: LQRY
0 Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Product Inquiry
Add to Wish List Compare this Product

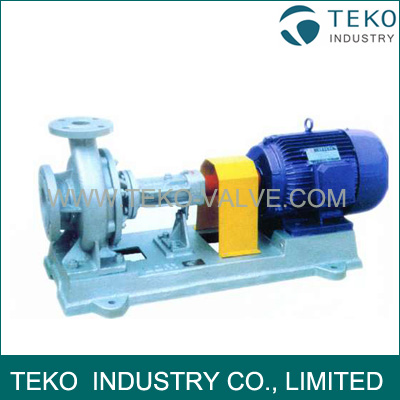

LQRY Hight Temperature Hot Oil Pump

Hot oil pump series is made with advanced technology and have high efficiency. It can work steadily long without leakage under heat conditions. It has no additional cooling system and can be used safely and reliably. It's widely used in the thermosphere heating system in our country and has entered a lot of industry fields such as petroleum, rubber, plastic, pharmacy, spinning, printing and dyeing, road building, food and so on, used to transport weak-corrosive high temperature liquid not containing solid granules. The using temperature is ≤350°C, and it is an ideal thermal oil circulation pump.

Specifications:

1. Flow rate up to 400m3/h
2. Delivery head up to 85.0m
3. Power up to 132kw     2900 r/min
    Three-phase power supply
4. Suitable Medium:Oil Or other High-TEMP Medium
5. Suitable Temperature: Less than 350°C

Materials:

Flow-Through:Cast Steel
Body:Carbon Steel

Applications:

1.Petroleum Industry
2.Chemical Industry
3. Pharmacy and Health
4. Environmental and Water treatment
5.electroplating industry
6.Environmental protection
7.food service industry
8.Printing and dyeing area
9.textile industry, etc

Technical Parameters:


Model No. Flow Rate Head       (m) Speed (r/min) Power(KW)
(l/min) (m3/h) Shaft   Power Motor Power
26-20-100 75 4.5 15 2825 0.45 0.75
50-32-150 133 8 22 2740 1 1.5
50-32-160 167 10 25 2840 1.5 2.2
65-40-160 208 12.5 25 2880 2.5 3
50-50-170 208 12.5 32 2890 3.2 4
65-50-180 533 32 32 2900 4.5 5.5
65-50-170 667 40 25 2900 4.5 5.5
80-50-180 667 40 40 2900 6.7 7.5
80-50-170 1000 60 20 2900 6.7 7.5
100-65-190 1000 60 38 2930 9.2 11
100-65-200 1333 80 40 2930 12.5 15
100-65-220 967 58 50 2930 12.5 15
100-65-230 1667 100 55 2940 19.5 22
100-65-240 1667 100 70 2950 25.5 30
100-65-257 1667 100 80 2950 32.5 37
125-100-190 2583 155 30 2940 20 22
125-100-220 2667 160 45 2950 25.5 37
125-80-250 2667 160 60 2970 32.5 45
125-100-257 3333 200 60 2970 42.8 55
125-100-260 4333 260 70 2970 64.3 75
125-100-270 5000 300 70 2970 72.3 90
125-100-270 3667 220 85 2970 68 90
150-125-270 5667 340 76 2970 89.5 110
150-125-270 6667 400 78 2970 106 132
