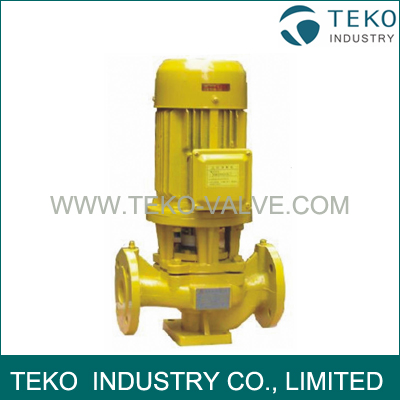

Concentrated Sulfuric Acid Pump

GBW/GBL/GBY Sulfuric Acid pump is a centrifugal pump based on IS-performance parameters. The use of cast iron and outstanding hydraulic model make it an ideal new generation of chemical pump products. Applying a good mechanical seal, with hard ally rotator and stator, it achieves advantages of wear-resistant, non-leaking, and long service life.

Specifications:

1. Flow rate up to 550 m3/h
2. Delivery head up to 50.0m
3. Power up to 55.0 kw     2900/1450 r/min
    Volt=380V/50HZ
   Three-phase power supply  if request.
   Single-phase power supply if request.
4. Suitable Medium:Concentrated Sulfuric acid
5. Mechanical Seal

Materials:

Casing:Cast Iron/Carbon Steel for Concentrated Sulfuric Acid
Impeller:Cast Iron/Carbon Steel for Concentrated Sulfuric Acid

Technical Parameters:

GBW Horizontal Concentrated Sulfuric Acid Pump

Model No. Capacity  (m3/h) Head    (m) Speed    (r/min) Power    (KW)
25GBW-20 4 20 2900 1.1
25GBW-32 4 32 2900 2.2
32GBW-20 5 20 2900 1.1
32GBW-32 5 32 2900 2.2
40GBW-20 6.3 20 2900 1.5
40GBW-32 6.3 32 2900 3
40GBW-50 6.3 50 2900 5.5
50GBW-12.5 12.5 12.5 2900 1.5
50GBW-20 12.5 20 2900 2.2
50GBW-32 12.5 32 2900 4
50GBW-50 12.5 50 2900 7.5
65GBW-12.5 25 12.5 2900 2.2
65GBW-20 25 20 2900 4
65GBW-32 25 32 2900 5.5
65GBW-50 25 50 2900 11
80GBW-12.5 50 12.5 2900 4
80GBW-20 50 20 2900 7.5
80GBW-32 50 32 2900 11
80GBW-50 50 50 2900 18.5
100GBW-12.5 100 12.5 2900 7.5
100GBW-20 100 20 2900 15
100GBW-32 100 32 2900 18.5
100GBW-50 100 50 2900 30
125GBW-12.5 160 12.5 2900 15
125GBW-20 160 20 2900 18.5
125GBW-32 160 32 2900 30
125GBW-50 160 50 2900 45
150GBW-20 160 20 2900 18.5
150GBW-32 160 32 2900 30
200GBW-12.5 200 12.5 1450 18.5
200GBW-20 200 20 1450 22
250GBW-20 550 20 1450 55


GBL Vertical Concentrated Sulfuric Acid Pump

Model No. Capacity  (m3/h) Head    (m) Speed    (r/min) Power    (KW)
25GBL-20 4 20 2900 1.1
25GBL-32 4 32 2900 2.2
32GBL-20 5 20 2900 1.1
32GBL-32 5 32 2900 2.2
40GBL-20 6.3 20 2900 1.5
40GBL-32 6.3 32 2900 3
40GBL-50 6.3 50 2900 5.5
50GBL-12.5 12.5 12.5 2900 1.5
50GBL-20 12.5 20 2900 2.2
50GBL-32 12.5 32 2900 4
50GBL-50 12.5 50 2900 7.5
65GBL-12.5 25 12.5 2900 2.2
65GBL-20 25 20 2900 4
65GBL-32 25 32 2900 5.5
65GBL-50 25 50 2900 11
80GBL-12.5 50 12.5 2900 4
80GBL-20 50 20 2900 7.5
80GBL-32 50 32 2900 11
80GBL-50 50 50 2900 18.5
100GBL-12.5 100 12.5 2900 7.5
100GBL-20 100 20 2900 15
100GBL-32 100 32 2900 18.5
100GBL-50 100 50 2900 30
125GBL-12.5 160 12.5 2900 15
125GBL-20 160 20 2900 18.5
125GBL-32 160 32 2900 30
125GBL-50 160 50 2900 45
150GBL-20 160 20 2900 18.5
150GBL-32 160 32 2900 30
200GBL-12.5 200 12.5 1450 18.5
200GBL-20 200 20 1450 22
250GBL-20 550 20 1450 55



GBY Submerged Concentrated Sulfuric Acid Pump:

Model No. Outlet  (mm) Capacity Q Head       (m) Speed  (r/min) Power    (KW)
m3/h L/s
GBY25-16 25 3.6 1 16 2900 2.2
GBY25-16A 25 3.27 0.91 13 2900 1.5
GBY25-25 25 3.6 1 25 2900 3
GBY25-25A 25 3.27 0.91 20 2900 3
GBY25-41 25 3.6 1 41 2900 5.5
GBY25-41A 25 3.27 0.91 33 2900 4
GBY40-16 32
