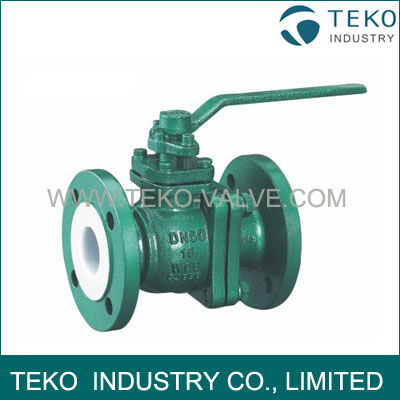

PTFE-lining Ball Valve, PFA-lined ball valve
PTFE-lining Ball Valve, PFA-lined ball valve
- Availability: In Stock
- Product Model: Q4F4
$0.00
Ex Tax: $0.00
PFA-lined flanged ball valve, PTFE Lining Ball Valve
Specifications:
1)Material:WCB Lined PTFE
2)Size rating:NPS 1/2"~16"
3)Working Pressure:PN0.6~1.6MPa
4)DESIGN Standard:GB 12237
5)FACE TO FACE Standard:ASME 16.10
6)Flange End of Ball Valve:ANSI B16.5a
7)Ball Valve TEST Standard:API 598
8) Working temperature: Less than 200 degree
Material List of PFA-lined flanged ball valve:
| NO. | Parts Name | Material | |||
| Ductile Iron | WCB | CF8 | CF8M | ||
| 1 | Body, Bonnet | QT400 | WCB | CF8 | CF8M |
| 2 | Ball | WCB | WCB | CF8 | CF8M |
| 3 | Liner,Seat | PTFE, PCTFE, FEP, PFA, PO, UHMWPE | |||
| 4 | Packing | PTFE | |||
| 5 | Handle | WCB | |||
