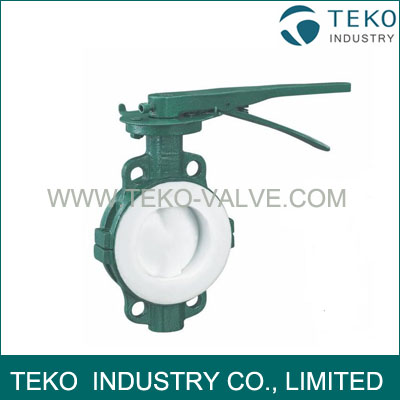

PTFE Lined Butterfly Valve
PTFE Lined Butterfly Valve
- Availability: In Stock
- Product Model: D71F4
$0.00
Ex Tax: $0.00
PTFE Lined Butterfly Valve
Specifications of PTFE Butterfly Valve:
1)Material:Cast Iron With Liner
2)Size rating:NPS 1-1/2“~48”
3)Working Pressure:PN0.6~1.6MPa
4)DESIGN Standard:GB 12238
5)FACE TO FACE Standard:GB1221
6) Wafer End: GB9113
7)TEST Standard:GB/T 12252
Material List:
| NO. | Parts Name | Material | |||
| Cast Iron | WCB | CF8 | CF8M | ||
| 1 | Body | HT250 | WCB | CF8 | CF8M |
| 2 | Disc | WCB | 35# | CF8 | CF8M |
| 3 | Shaft | 1Cr13 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 4 | Liner | PTFE, PCTFE, FEP, PFA, PO | |||
| 5 | O ring | FPM | |||
| 6 | Handle | ZI101 | |||
