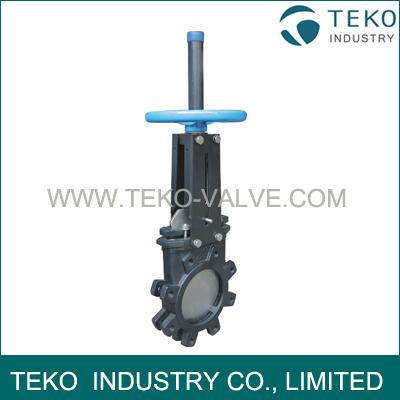

Full Lug Knife Gate Valve

Specifications

Pressure rate: Class 150
Size:2"-48"
Body Material: Ductile iron, Carbon Steel, stainless steel, duplex stainless steel
Operated Type:Handwheel

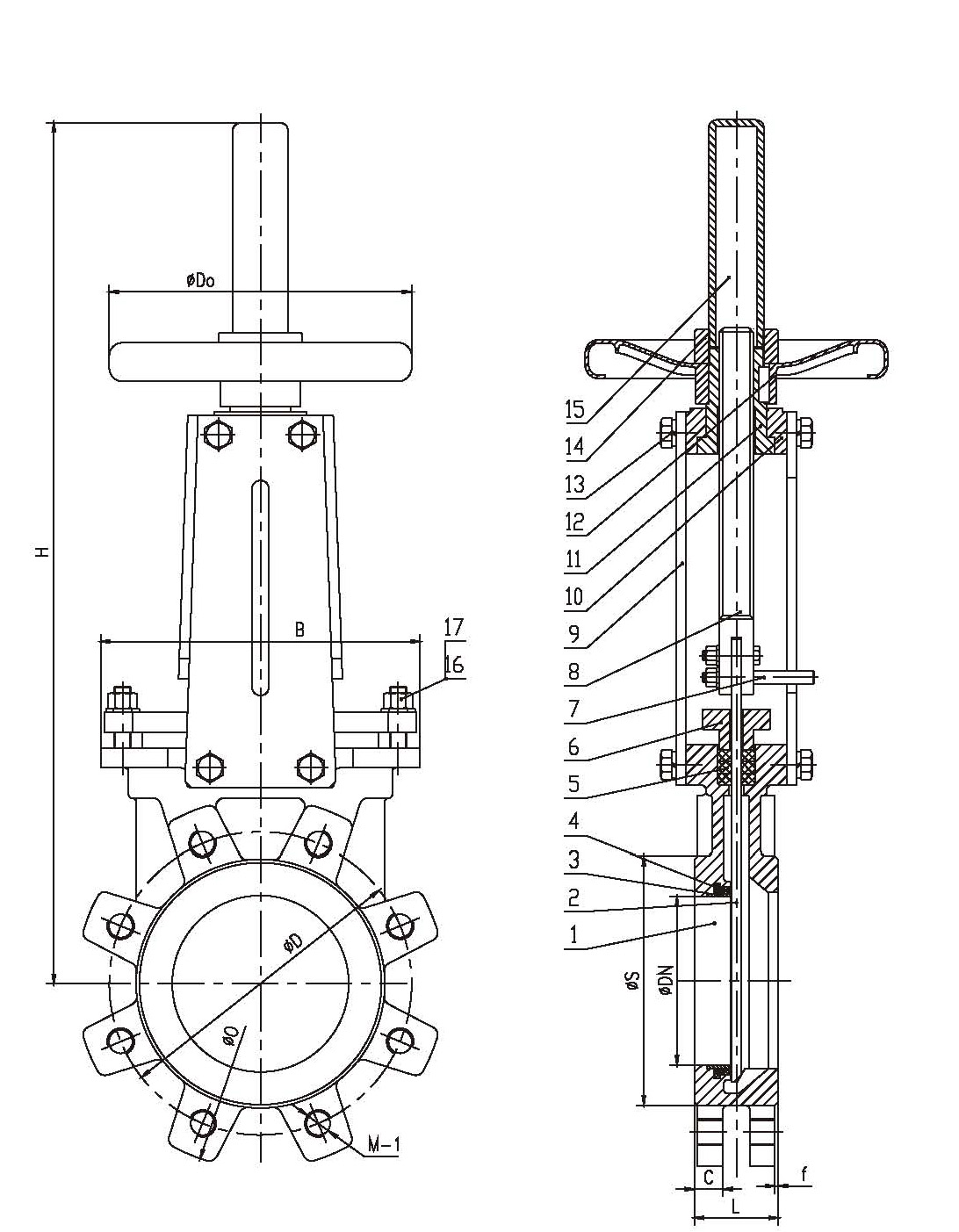

Drawing & Dimensions




DN

L

O

D

S

C

f

M-(UNC)

B

H

Do

in

mm

2"

50

48

152

120.5

91.9

16

1.6

4-M5/8"-11

136

375

180

2-1/2"

65

48

178

139.5

104.8

16

1.6

4-M5/8"-11

151

420

180

3"

80

51

190

152.5

127.0

17

1.6

4-M5/8"-11

170

450

200

4"

100

51

229

190.5

157.2

17

1.6

8-M5/8"-11

190

512

200

5"

125

57

254

216

185.4

17

1.6

8-M3/4"-10

212

570

220

6"

150

57

280

241.5

215.9

21

1.6

8-M3/4"-10

230

665

250

8"

200

70

343

298.5

269.7

21

1.6

8-M3/4"-10

286

825

300

10"

250

70

406

362

323.8

24

1.6

12-M7/8"-9

338

1000

350

12"

300

76

483

432

381.0

24

1.6

12-M7/8"-9

388

1155

350

14"

350

76

533

476

412.7

33

1.6

12-M1"-8

460

1310

400

16"

400

89

597

540

469.9

35

1.6

16-M1"-8

520

1475

500

Easy Maintenance
