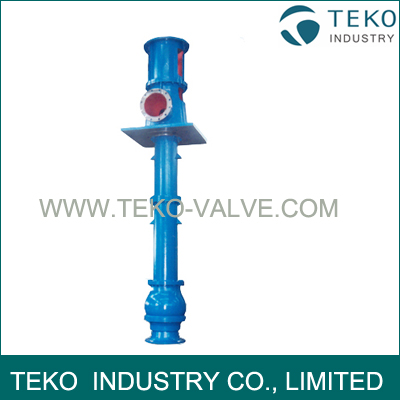

Long Shaft Pump

LC Model Long Shaft Pump

Description:

LC Type vertical long shaft pumps are newly researched and developed on the basis of absorbing the advanced technology of domestic and foreign similar products. They are provided for delivering clear water, rainwater, sewage and seawater below 55℃, even reach to 90℃(though special designed).They hand been used for handling circulating water in large scale power stations, metallurgy, water supply & drainage of civil engineering and farmlands as well as mining drainage.

Model Meaning of Long Shaft Pump:

200LC 23A×2-L H
200—The dia. Of discharge is φ200mm；
JCL—Vertical long shaft pump；
23—Single stage head is 23m at design point；
A—Impeller cut code；
×2—Stage number；
L—Length of under liquid(L≤40m)；
H—External column

Material List

Remarks：the materials would be changed following the requirements of customers, parts marked ☆ are easy wearing parts.
