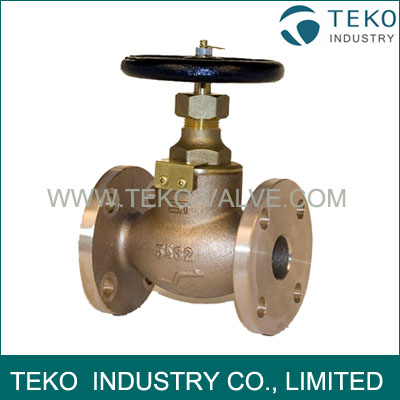

JIS Standard Bronze Globe Valve
JIS Standard Bronze Globe Valve
- Availability: In Stock
- Product Model: JIS F7301
$0.00
Ex Tax: $0.00
JIS Standard Bronze Globe Valve
Material of Bronze Globe Valve
1 - Body - Bronze - BC6
2 - Disc - Bronze - BC6
3 - Stem - Brass - C3771BD

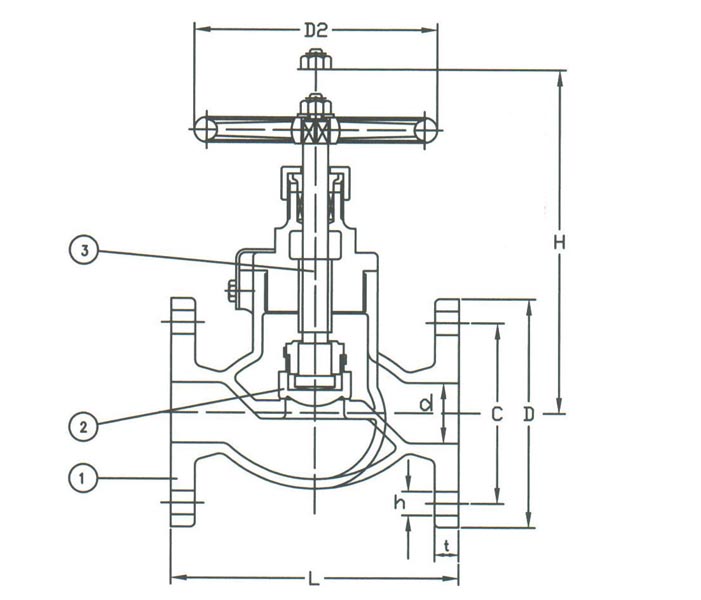

Drawing & Dimensions
|
Item NO. |
Size |
L (mm) |
D |
C |
Number of Holes |
h |
|
F7301-015 |
15 |
100 |
80 |
60 |
4 |
12 |
|
F7301-020 |
20 |
110 |
85 |
65 |
4 |
12 |
|
F7301-025 |
25 |
120 |
95 |
75 |
4 |
12 |
|
F7301-032 |
32 |
140 |
115 |
90 |
4 |
15 |
|
F7301-040 |
40 |
160 |
120 |
95 |
4 |
15 |
|
F7301-050 |
50 |
210 |
130 |
105 |
4 |
15 |
|
F7301-065 |
65 |
250 |
155 |
130 |
4 |
15 |
|
F7301-080 |
80 |
280 |
180 |
145 |
4 |
N/A |
|
F7301-100 |
100 |
340 |
200 |
165 |
8 |
N/A |
