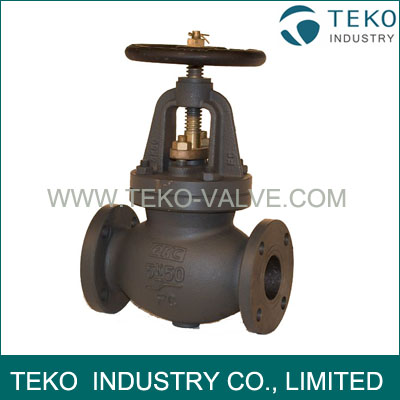

JIS F7305 Cast Iron Globe Valve
JIS F7305 Cast Iron Globe Valve
- Availability: In Stock
- Product Model: JIS F7305
$0.00
Ex Tax: $0.00
JIS F7305 Cast Iron Globe Valve
Main Material of Cast Iron Globe Valve
1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD
Drawing & Dimensions
|
Item NO. |
Size |
L (mm) |
D (mm) |
C (mm) |
Number of Holes |
h |
|
F7305-050 |
50 |
210 |
130 |
105 |
4 |
15 |
|
F7305-065 |
65 |
250 |
155 |
130 |
4 |
15 |
|
F7305-080 |
80 |
280 |
180 |
145 |
4 |
19 |
|
F7305-100 |
100 |
340 |
200 |
165 |
8 |
19 |
|
F7305-125 |
125 |
410 |
235 |
200 |
8 |
19 |
|
F7305-150 |
150 |
480 |
265 |
230 |
8 |
19 |
|
F7305-200 |
200 |
570 |
320 |
280 |
8 |
23 |
|
F7305-250 |
250 |
740 |
385 |
345 |
12 |
23 |
|
F7305-300 |
300 |
840 |
430 |
390 |
12 |
23 |
|
F7305-350 |
350 |
940 |
480 |
435 |
12 |
25 |
|
F7305-400 |
400 |
1050 |
540 |
495 |
16 |
25 |

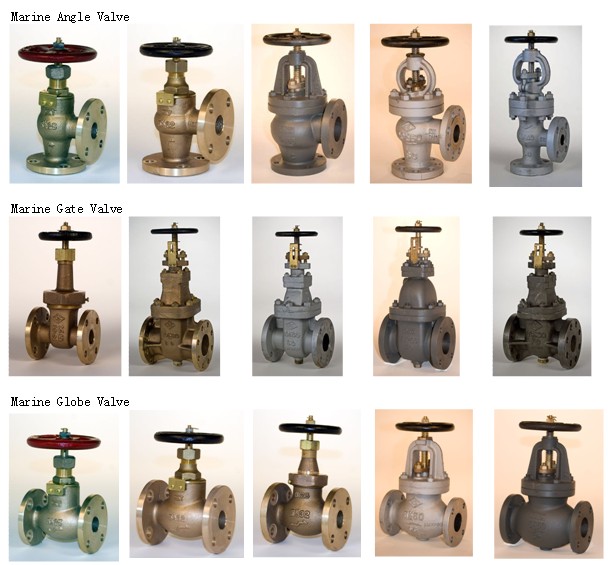

Our Product
