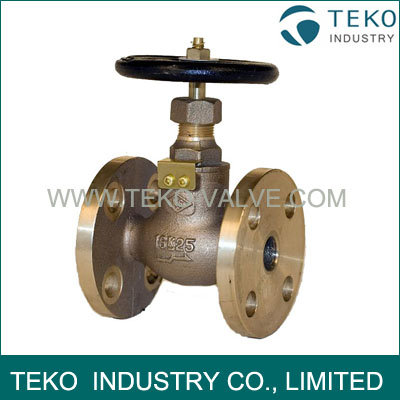

JIS 16K Cast Bronze Globe Valve
JIS 16K Cast Bronze Globe Valve
- Availability: In Stock
- Product Model: JIS F7303
$0.00
Ex Tax: $0.00
JIS 16K Cast Bronze Globe Valve
Main Material
1 - Body - Bronze - BC6
2 - Disc - Bronze - BC6
3 - Stem - Brass - C3771BD

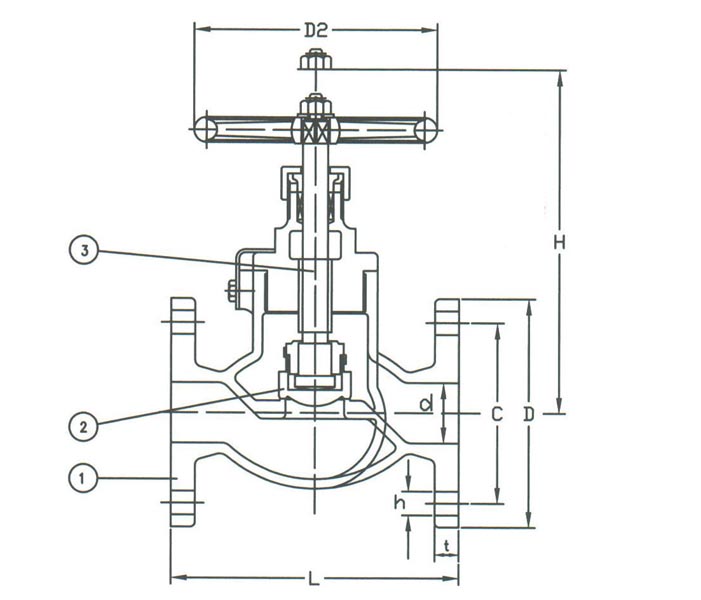

Drawing & Dimensions of Bronze Globe Valve
|
Item NO. |
Size |
L (mm) |
D (mm) |
C (mm) |
Number of Holes |
h |
|
F7303-015 |
15 |
110 |
95 |
70 |
4 |
15 |
|
F7303-020 |
20 |
120 |
100 |
75 |
4 |
15 |
|
F7303-025 |
25 |
130 |
125 |
90 |
4 |
19 |
|
F7303-032 |
32 |
160 |
135 |
100 |
4 |
19 |
|
F7303-040 |
40 |
180 |
140 |
105 |
4 |
19 |
|
F7303-050 |
50 |
220 |
155 |
120 |
8 |
N/A |
|
F7303-065 |
65 |
270 |
175 |
140 |
8 |
N/A |
|
F7303-080 |
80 |
300 |
200 |
160 |
8 |
N/A |
