Horizontal Clear Water Pump

Horizontal Clear Water Pump
Horizontal Clear Water Pump
  • Availability: In Stock
  • Product Model: ISW
0 Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Product Inquiry
Add to Wish List Compare this Product

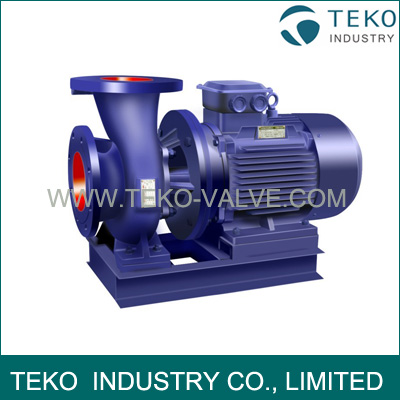

ISW Horizontal Clear Water Pump

Specification:

Flow Rate Range: 1.9-1450m3/h
Head Range: 4.5-156m
Operation Temperature: -20℃-120℃
Matched Power: 0.37-250KW
Working Pressure: ≤1.6MPa
Flow-through Material: Cast Iron, Stainless Steel

Technical Parameters:

Model No. Size Flow Rate Head Eff. Speed Power (NPSH)r
mm m3/h L/S m % r/min KW m
50-100 50 8.8 2.44 13.6 55 2900 1.1 2.3
12.5 3.47 12.5 62
16.3 4.53 11.3 60
50-100A 50 8 2.22 11 60 2900 0.75 2.3
11 3.05 10
14.5 4.03 9
50-125 50 8.8 2.44 21.5 49 2900 1.5 2.3
12.5 3.47 20 58
16.3 4.53 17.8 57
50-125A 50 8 2.22 17 57 2900 1.1 2.3
11 3.05 16
14.5 4.03 14
50-160 50 8.8 2.44 33 45 2900 3 2.3
12.5 3.47 32 52
16.3 4.53 30 51
50-160A 50 8.2 2.28 29 44 2900 2.2 2.3
11.7 3.25 28 51
15.2 4.22 26 50
50-160B 50 7.3 2.38 23 50 2900 1.5 2.3
10.4 2.89 22
13.5 3.75 20.5
50-200 50 8.8 2.44 52 38 2900 5.5 2.3
12.5 3.47 50 46
16.3 4.53 48 46
50-200A 50 8.3 2.31 45.8 37 2900 4 2.3
11.7 3.25 44 45
15.3 4.25 42 45
50-200B 50 7.5 2.08 37 44 2900 3 2.3
10.6 2.94 36
13.8 3.83 34
50-250 50 8.8 2.44 82 29 2900 11 2.3
12.5 3.47 80 38
16.3 4.53 77.5 40
50-250A 50 8.2 2.28 71.5 38 2900 7.5 2.3
11.6 3.22 70
15.2 4.22 68
50-250B 50 7.6 2.11 61.4 37 2900 7.5 2.3
10.8 3 60
14 3.89 58
50-250C 50 7.1 1.97 53.2 36 2900 5.5 2.3
10 2.78 52
13.1 3.64 50.4
