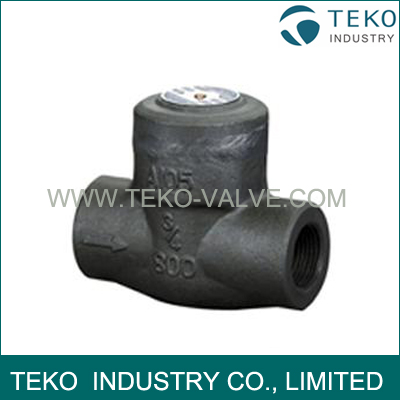

High Quality Welded Bonnet Spring Check Valve
Technical Data:
1)Material:A105, LF2, SS304, SS316, SS304L, SS316L, F11, F22
2)Size rating:NPS 1/2"~2"
3)Working Pressure:Class90Lb~2500Lb
4)Design Standard:API 602
5)Weld End: As per ASME B 16.11
6)Test Standard:API598
Material List:
| NO. | Part Name | CStoASTM | AStoASTM | SStoASTM | |
| A105 | F22 | F304（L） | F316（L） | ||
| 1 | Body | A105 | A182F22 | A182F304（L） | A182F316（L） |
| 2 | Disc | A276420 | A276304 | A276304（L） | A276316（L） |
| 3 | Gasket | 316+Graphite | 316+PTFE | ||
| 4 | Bonnet | A105 | A182F22 | A182F304（L） | A193 B8（M） |
| 5 | Nameplate | SS | |||
| 6 | Bolt | A193B7 | A193B16 | A193B8（M） | A193B8（M） |
| 7 | Ball | A182F304 | A182F304 | A182F304 | A182F304 |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29~425 | -29~550 | -29~180 | ||
Dimensions
| NPS | R.B. | 3/8” | 1/2” | 3/4” | 1” | 11/4” | 11/2” | 2” | |
| F.B. | 3/8” | 1/2” | 3/4” | 1” | 11/4” | 11/2” | 2” | ||
| L | 92 | 111 | 111 | 120 | 152 | 172 | 200 | 220 | |
| W | 65 | 79 | 79 | 97 | 104 | 120 | 139 | 215 | |
| Weight | Bolted Bonnet | 1.6 | 3.4 | 3.3 | 5.5 | 6 | 9.2 | 12.9 | 16.2 |
| Welded Bonnet | 1.3 | 3.2 | 3.1 | 4.8 | 5.4 | 8.5 | 11.2 | 14.3 | |
