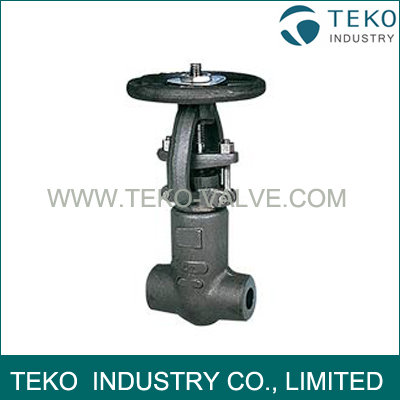

Forged Carbon Steel Gate Valve
Forged Carbon Steel Gate Valve
- Availability: In Stock
- Product Model: Z61H
$0.00
Ex Tax: $0.00
Forged Carbon Steel Globe Valve
Technical Data:
1)Material:A105, LF2, SS304, SS316, SS304L, SS316L, F11, F22
2)Size rating:NPS 1/2"~2" Q
3)Working Pressure:Class900Lb~2500Lb
4)Design Standard:API 602
5)Weld End: As per ASME B 16.11
6)Test Standard:API598
Material List:
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 430&410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Pressure Seat | A105 | A182 F304 | A182 F304(L) | F316(L) |
| 6 | Pressure Ring | A276 304L | A276 316L | ||
| 7 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 8 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8(M) | |
| 9 | Pin | A276 420 | A182 F304(L) | ||
| 10 | Stem Packing | Flexible Graphite | PTFE | ||
| 11 | P.S.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Gland | A276 F420 | A182 F304 | ||
| 13 | Gland Flange | A216 WCB | A351 CF8 | ||
| 14 | Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Yoke Nut | A276-410 | |||
| 16 | Retaining Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 17 | Handwheel | A197 | |||
| 18 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 19 | Oil Cup | Brass | |||
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29~425 | -29~550 | -29~180 | ||
