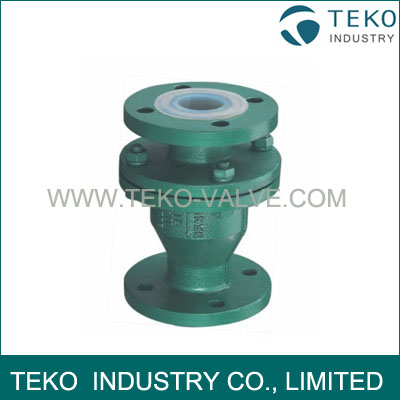

Fluorine Lining Swing Check Valve
Fluorine Lining Swing Check Valve
- Availability: In Stock
- Product Model: H44F46
$0.00
Ex Tax: $0.00
Fluorine Lining Swing Check Valve
Specifications:
1)Material:WCB Lined PTFE
2)Size rating:NPS 1/2"~12"
3)Working Pressure:Class 150 Lb, JIS 10K
4)DESIGN Standard:GB 12236
5)FACE TO FACE Standard:ASME 16.10
6) Flange End:ANSI B16.5a
7)TEST Standard:API 598
Material List:
| NO. | Parts Name | Material |
| 1 | Body | Cast Iron, WCB, SS,Lined with FEP, PTFE |
| 2 | Disc | WCB, SS,Lined with FEP, PTFE |
| 3 | Bonnet | Cast Iron, WCB, SS,Lined with FEP, PTFE |
| 4 | Gasket | PTFE,FEP |
