Female Thread Safety Valve
Female Thread Safety Valve
- Availability: In Stock
- Product Model: A27H/A27Y
$0.00
Ex Tax: $0.00
Female Thread Safety Valve

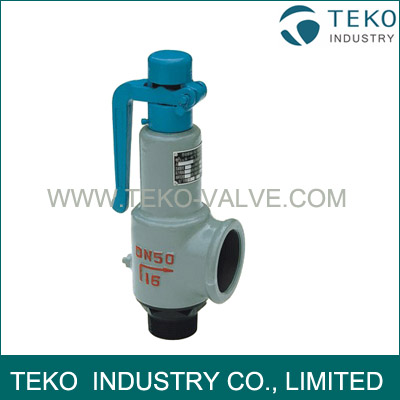

A27H Female Thread Safety Valve With Lever is used for the equipment and pipeline of water, air, steam etc, with working temperature less than 200℃.
A27Y Female Thread Safety Valve With Lever is used for the equipment and pipeline of corrosive liquids with working temperature less than 200℃.
Material List
| NO. | Parts Name | Material (A27H) |
Material (A27W-P) |
Material (A27W-R) |
| 1 | Body | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 2 | Nozzle | 35 | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 3 | Adjusting Ring | ZG2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 4 | Disc | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 5 | Spring | 50CrVA | 50CrVA Coated PTFE | 50CrVA Coated PTFE |
| 6 | Stem | 2Cr13 | 2Cr13 | 1Cr18Ni9Ti |
| 7 | Adjusting Bolt | 45 | 2Cr13 | 1Cr18Ni9Ti |
| 8 | Cap | ZG200-400 | ZG200-400 | 1Cr18Ni9Ti |
