Ductile Iron Wafer Type Duo Disc Check Valve

Wafer Type Duo Disc Check Valve, Double Door Check Valve, Water Service Ductile Cast Iron Check Valve

Material:

body:GG25/GGG40/SS304/SS316
spring: stainless steel
disc: SS316/SS304/WCB/C954
seat ring: NBR/EPDM/VITON/PTFE

Specification:

Size: DN40(1-1/2") -- DN700(28")
Working pressure:1.0/1.6 Mpa
Working temperature: NBR SEAT:  0°C~80°C
                        EPDM SEAT: -10°C ~ 120°C
                        VITON: -20°C ~ 180° C

Face to face: DIN3202,ANSI 125/150
Flange standard: EN1092-2, ANSI 125/150 etc.
Testing: DIN3230, API598
Suitable medium: fresh water, sea water, food stuff, oil, acid, alkaline liquid etc.

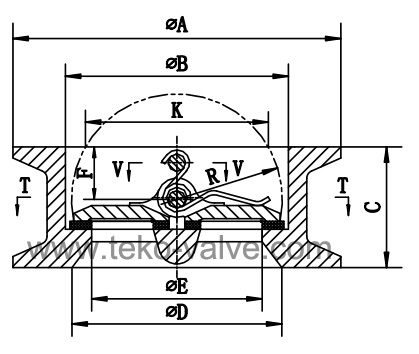

Drawing:

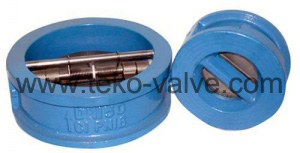

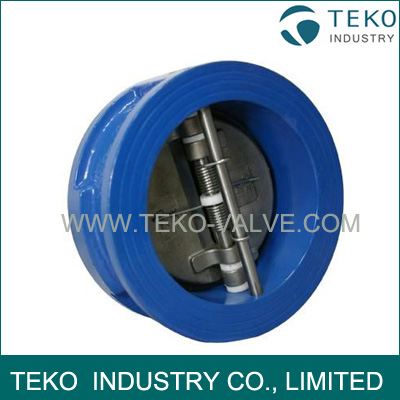

Images:
