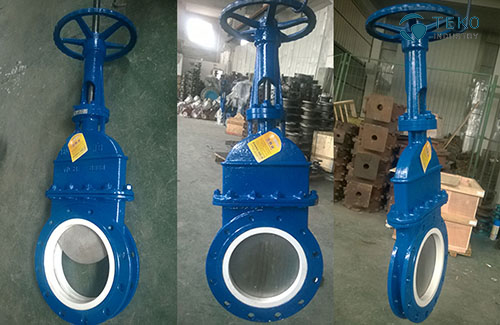

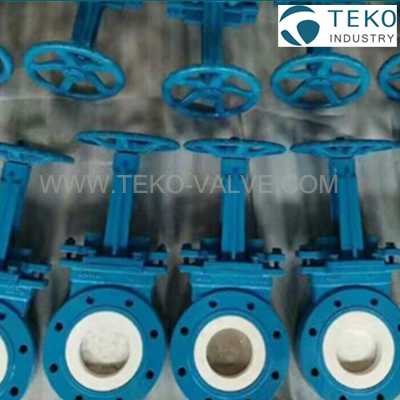

Manual Abrasion - Resistant Ceramic Lining Knife Gate Valve For Ash And Powder

Manual Abrasion-resistant Highly Durable Ceramic Lining Knife Gate Valve For Ash and Powder

Main Applications

1. The valve is used in concentrating mills and coal preparation plants for isolation function. Suitable medium: dry ash, ash slag, coal slurry

2. Operating pressure: 1.0Mpa-1.6Mpa

3. Operating temperature: not higher than 180°C

Features

1. The valve is used in excessive wear pipeline for isolation function. The valve is compact in design and easy to install. The ceramic seal face has good hardness (HRC ≥ 90 ) and good at handling abrasion , solving the problem of hard and brittle ceramics, effectively ensuring the high wear-resistance and corrosion-resistance. The valve plate is made of high chromium alloy with high wear-resistance, impact -resistance, and it can be used for throttling. Besides, the valve is featured with light and easy opening and little friction. The reasonable design eliminates the ash & slag build-up on the valve chamber.

2. The valve can be installed horizontally or vertically, not inversely.

3. Installation and tough-in dimension.

Part Name and material
