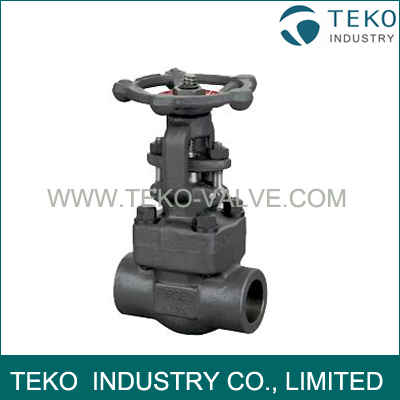

Bolted Bonnet Weld End Forged Steel Valve
Bolted Bonnet Weld End Forged Steel Valve
- Availability: In Stock
- Product Model: Z61H
$0.00
Ex Tax: $0.00
Bolted Bonnet Weld End Forged Steel Valve
Technical Data:
1)Material:A105, LF2, SS304, SS316, SS304L, SS316L, F11, F22
2)Size rating:NPS 3/8"~2"
3)Working Pressure:Class900Lb~2500Lb
4)Design Standard:API 602
5)Weld End: As per ASME B 16.11
6)Test Standard:API598
Material List:
| NO. | Part Name | CStoASTM | AStoASTM | SStoASTM | |
| A105 | F22 | F304(L) | F316(L) | ||
| 1 | Body | A105 | A182F22 | A182F304(L) | A182F316(L) |
| 2 | Seat | A276420 | A276304 | A276304(L) | A276316(L) |
| 3 | Wedge | A182F430&410 | A182F304 | A182F304(L) | A182F316(L) |
| 4 | Stem | A182F6 | A182F304 | A182F304(L) | A182F316(L) |
| 5 | Gasket | Corrugated SS+graphite | SS+PTFE | ||
| 6 | Bonnet | A105 | A276f304 | A276F304(L) | A276F316(L) |
| 7 | Bolt | A193B7 | A193B16 | A193B8 | A193B8M |
| 8 | Pin | A276420 | A276 304 | ||
| 9 | Bushing | A276410 | A182F304(L) | A182F316(L) | |
| 10 | Gland Nut | A193B7 | A193B16 | A193B8 | A193B8M |
| 11 | Gland Flange | A105 | A182F11 | A182F304(L) | A182F316(L) |
| 12 | Nut | A1942H | A1944 | A1948 | A1948M |
| 13 | Yoke Nut | A276420 | |||
| 14 | H.W.Lock Nut | A1942H | A1944 | A1948 | A1948M |
| 15 | Nameplate | SS | |||
| 16 | Handwheel | A197 | |||
| 17 | Bearing Gasket | A473431 | |||
| 18 | Stem Packing | Flexible Graphite | PTFE | ||
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH2OOH etc | ||
| Suitable Temperature | -29~425 | -29~550 | -29~180 | ||

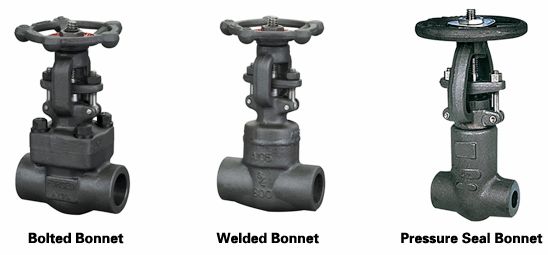

Types of Bonnet Seal
