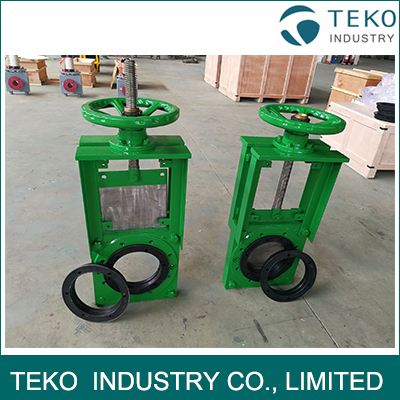

Bi-Directional Seal NR Elastomer Seat Demanding Knife Valve For Slurry Zero Leakage
Bi-Directional Seal NR Elastomer Seat Demanding Knife Valve For Slurry Zero Leakage
- Availability: In Stock
- Product Model: PZ73NR
$0.00
Ex Tax: $0.00
Bi-directional Seal NR Elastomer Seat Demanding Slurry Knife Valve For Slurry Applications
Specifications & Standards
| Size Range | DN50~600mm | Design | Mill Standard |
| Pressure rating | 150 psi(10 bar) | Face to face | MSS-SP-81 |
| Body Style | Two-piece bolted | Drilling | ASME B16.5 CL150 |
Introduction

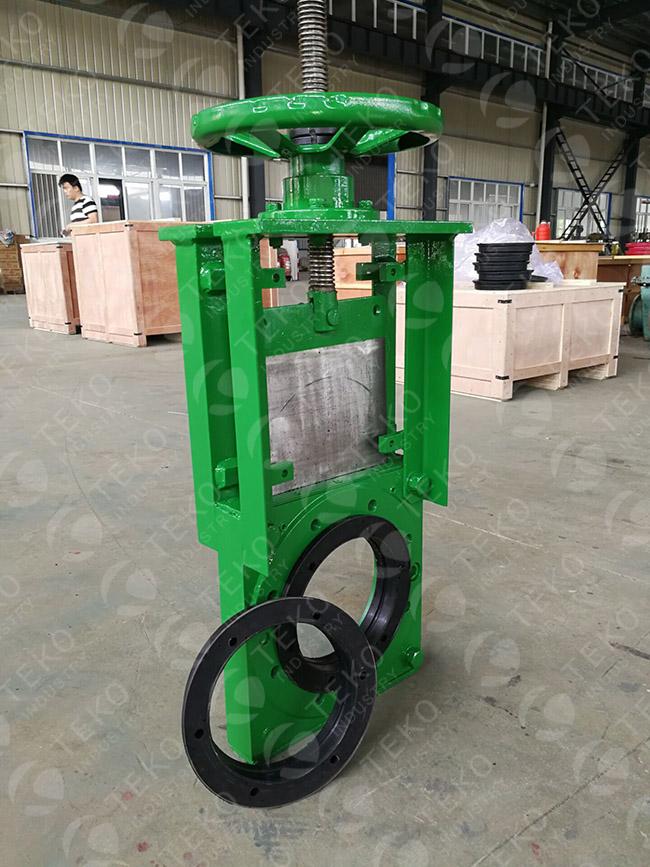

Our TEKO slurry valve is bi-directional slurry valve, designed for demanding slurry applications. Twin elastomer seats and push-through gate design facilitate self-cleaning and prevent media build up.
The durable ductile iron body is offered in a compact wafer style. When fully open, the valve bore offers no resistance to line media.
Why TEKO slurry knife valve?
- Easy & quick conversion between manual and pneumatic actuation
- Secondary wiper seal extended gate life and prevent discharge from top of valve
- Metal-reinforced, elastomer sleeves provide energized, zero leakage shutoff in both directions.
- Robust gate available in a wide range of corrosion resistant alloys to suit the applications.
- Ample clearance for push-through allows complete gate closure.
Applications
| Minerals & Mining | Cement and fiber Cement | Fossil and biofuels | Water and Waste water |
| Fertilizers | Pulp and Paper | Pigment and fillers | Sand Service |
