Wafer Short Pattern SS Ball Valve Flange Type WCB Material With Space Saving Structure
Wafer Short Pattern SS Ball Valve Flange Type WCB Material With Space Saving Structure
- Availability: In Stock
- Product Model: Q71F
$0.00
Ex Tax: $0.00
Wafer Short Pattern Stainless Steel Wafer Ball Valves With Space Saving Structure
- Stainless steel ASTM A351
- CF8M, flanged ANSI 150 ball valve.
- Full port, sizes 1/2'' to 8''.
- Temperature to180 degree.
- Blow out proof stem, adjustable stem packing.
- PTFE seats, packing and thrust washer.
- Space saving design. - 100% tested.
Material List
| No. | PART NAME | MATERIAL |
| 1 | BODY | AISI 316 - CF8M |
| 2 | END CONNECTION | AISI 316 |
| 3 | BALL | AISI 316 |
| 4 | BALL SEATS | P.T.F.E + 15% GLASS |
| 5 | RING | FKM (Viton) |
| 6 | THRUST WASHER | P.T.F.E |
| 7 | RING | FKM (Viton) |
| 8 | STEM SEAL | P.T.F.E |
| 9 | PACKING GLAND | STEEL |
| 10 | END STOP | AISI 430 (DN 10 - DN 50) STEEL (DN 65 - DN 200) |
| 11 | SPRING WASHER | STEEL |
| 12 | NUT | STEEL |
| 13 | STEM | AISI 316 |
| 14 | HANDLE | STEEL |
| 15 | HANDLE DN 150-200 | STEEL |
| 16 | SCREW | STEEL |
| 17 | SCREW | STEEL |
| 18 | BODY HANDLE DN150-200 | CAST IRON |

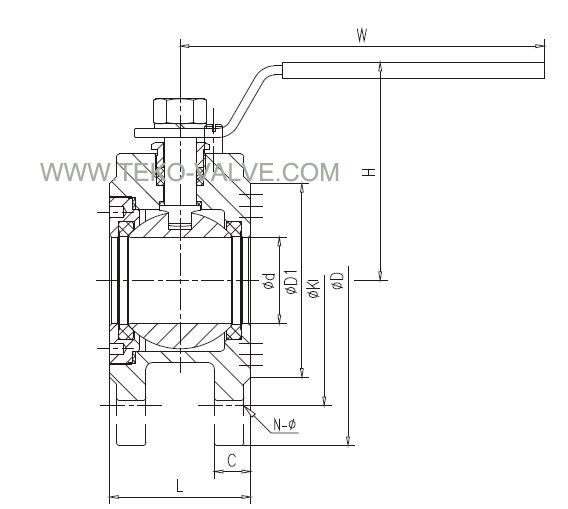

Dimensions
.jpg)
| DN | d | L | D | K | D1 | C | H | N-φ | W |
| 15 | 15 | 35 | 95 | 65 | 46 | 10 | 65 | 4-M12 | 100 |
| 20 | 20 | 37 | 105 | 75 | 56 | 11 | 70 | 4-M12 | 110 |
| 25 | 25 | 42 | 115 | 85 | 65 | 12 | 80 | 4-M12 | 125 |
| 32 | 32 | 53 | 135 | 100 | 76 | 14 | 90 | 4-M16 | 150 |
| 40 | 38 | 62 | 145 | 110 | 85 | 16 | 96 | 4-M16 | 160 |
| 50 | 50 | 78 | 160 | 125 | 100 | 17 | 104 | 4-M16 | 180 |
| 65 | 58 | 90 | 180 | 145 | 118 | 18 | 110 | 4-M16 | 200 |
| 80 | 76 | 110 | 195 | 160 | 132 | 18 | 130 | 8-M16 | 250 |
| 100 | 90 | 134 | 215 | 180 | 156 | 19 | 145 | 8-M16 | 270 |
| 125 | 100 | 197 | 245 | 210 | 185 | 22 | 180 | 8-M18 | 320 |
| 150 | 125 | 231 | 480 | 240 | 207 | 24 | 200 | 8-M23 | 320 |
