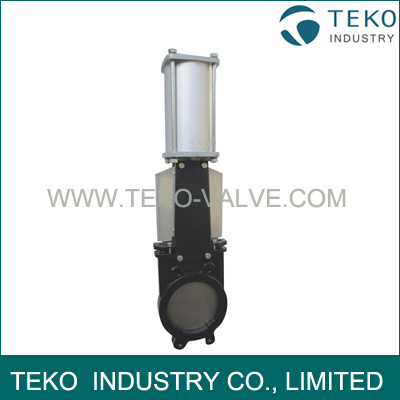

American Standard Full Lug Type knife gate valve

Specifications

Pressure rate: Class 150
Size:2"-32"
Body Material: Ductile iron, Carbon Steel, stainless steel, duplex stainless steel
Operated Type:Pneumatic Driven

Max. Working Pressure

Size Pressure
DN50-DN250 10 kg/cm2
DN300-DN450 7 kg/cm2
DN500-DN600 4 kg/cm2
DN700-DN900 2 kg/cm2
DN1000-DN1200 1 kg/cm2



Applications

*Pulp and Paper
*Power plants
*Wastewater treatment plants
*Chemical plants
*Food and Beverage
*Bulk handling
*Mining

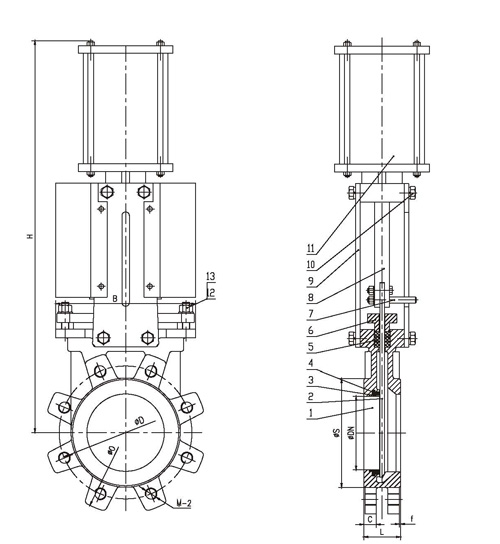

Drawing & Dimensions

DN

L

O

D

S

C

f

M-(UNC)

B

H

in

mm

2"

50

48

152

120.5

91.9

16

1.6

4-M5/8"-11

136

430

2-1/2"

65

48

178

139.5

104.8

16

1.6

4-M5/8"-11

151

460

3"

80

51

190

152.5

127.0

17

1.6

4-M5/8"-11

170

510

4"

100

51

229

190.5

157.2

17

1.6

8-M5/8"-11

190

570

5"

125

57

254

216

185.4

17

1.6

8-M3/4"-10

212

660

6"

150

57

280

241.5

215.9

21

1.6

8-M3/4"-10

230

720

8"

200

70

343

298.5

269.7

21

1.6

8-M3/4"-10

286

890

10"

250

70

406

362

323.8

24

1.6

12-M7/8"-9

338

1120

12"

300

76

483

432

381.0

24

1.6

12-M7/8"-9

388

1230

14"

350

76

533

476

412.7

33

1.6

12-M1"-8

460

1370

16"

400

89

597

540

469.9

35

1.6

16-M1"-8

520

1570

18"

450

89

635

578

533.4

36

1.6

16-M1"1/8-7

585

1720

20"

500

114

700

635

584.2

37

1.6

20-M1"1/8-7

635

1850

24"

600

114

813

749.5

692.1

37

1.6

20-M1"1/4-7

720

2150
