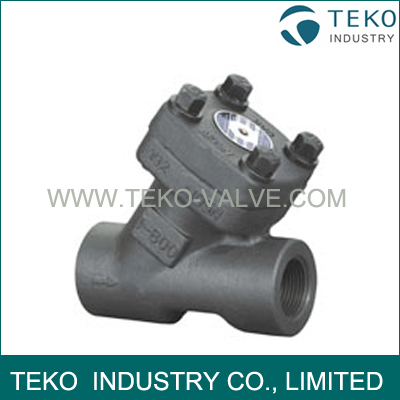

A105 Forged Steel Strainer
A105 Forged Steel Strainer
- Availability: In Stock
- Product Model: GL41H
$0.00
Ex Tax: $0.00
A105 Forged Steel Strainer
Technical Data:
1)Material:A105, LF2, SS304, SS316, SS304L, SS316L, F11, F22
2)Size rating:NPS 1/2"~2"
3)Working Pressure:Class150Lb~2500Lb
4)Design Standard:API 602
5)Weld End: As per ASME B 16.11
6)Test Standard:API598
Material List:
| NO. | Part Name | AS to ASTM | SS to ASTM | |
| Type A105 | Type A182 F304(L) | Type A182 F316(L) | ||
| 1 | Body | A105 | A182 F304(L) | A182 F316(L) |
| 2 | Gasket | SS+ Flexible graphite | ||
| 3 | Bonnet | A105 | A182 F304(L) | A182 F316(L) |
| 2 | Bolt | A193 B7 | A193 B8 | A193 B8M |
| 4 | Nameplate | AL | ||
| 5 | Rivet | H62 | ||
| 3 | Filter screen | A276 304 | A276 304(L) | A276 316(L) |
| Suitable Medium | W.O.G.etc | |||
| Suitable Temperature | -29 oC ~425 oC | -29 oC ~180 oC | ||
Dimensions & Weights
| Specification | R.P | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | |
| (NPS) | F.P | 1/4" | 3/4" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Face to face | L | 98 | 98 | 98 | 111 | 140 | 140 | 155 | 170 |
| Height | H | 70 | 70 | 70 | 100 | 110 | 120 | 120 | 150 |
| Height | d | 7 | 9 | 13 | 17.5 | 30 | 30 | 35 | 46 |
| (angle dimensions) | |||||||||
| Weight(Kg) | 2.2 | 2.2 | 2.1 | 4.2 | 8.9 | 8.9 | 10 | 18.6 |
