API609 Standard Ductile Iron Resilient Seated Buterfly Indsutrial Valves
- Availability: In Stock
- Product Model: LTD71X

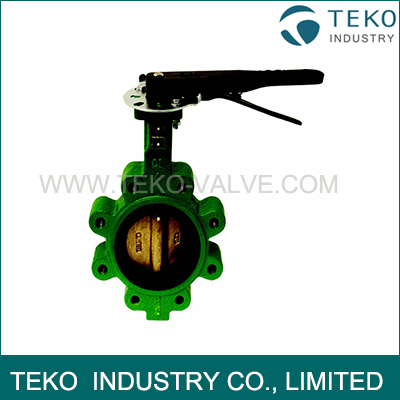

API609 Standard Ductile Iron Resilient Seated Buterfly Indsutrial Valves
The TEKO industrial butterfly valve is ideal for use in industrial and HVAC/mechanical applications. The resilient series butterfly valve is lug style valve designed to be economical ye full featurs.
STANDARD MATERIALS
Body: Cast Iron, ASTM A126 Class B
Disc: Aluminum Bronze, ASTM B148-C95400
Shaft: Stainless Steel, ASTM A276, Type 416
Seat: Black EPDM (FDA food grade) with phenolic backing
Bushings: PTFE
Stem Seal: EPDM
PERFORMANCE RATING
• Max Operating Pressure: 200 psi (13.8 bar)
• Temperature Range: -29° C to 107° C)

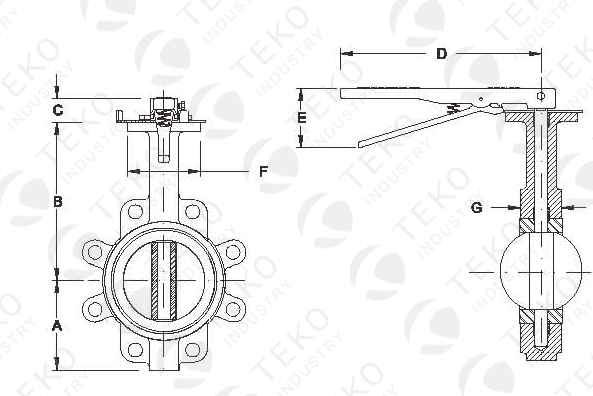

Installation Dimensions
|
Size(in) |
Dimensions in Inches |
||||||
|
A |
B |
C |
D |
E |
F |
G |
|
|
2 |
3.25 |
6.38 |
1.25 |
10.5 |
3.1 |
2.70 |
1.75 |
|
2.5 |
3.75 |
6.88 |
1.25 |
10.5 |
3.1 |
2.70 |
1.88 |
|
3 |
4.00 |
7.13 |
1.25 |
10.5 |
3.1 |
2.70 |
1.88 |
|
4 |
4.88 |
7.88 |
1.25 |
10.5 |
3.1 |
2.70 |
2.13 |
|
5 |
5.38 |
8.38 |
1.25 |
10.5 |
3.1 |
2.70 |
2.25 |
|
6 |
5.88 |
8.88 |
1.25 |
10.5 |
3.1 |
2.70 |
2.25 |
|
8 |
7.13 |
10.25 |
1.75 |
14.3 |
3.5 |
4.61 |
2.50 |
|
10 |
8.25 |
11.50 |
1.88 |
14.3 |
3.5 |
4.61 |
2.75 |
|
12 |
9.75 |
13.25 |
1.88 |
14.3 |
3.5 |
4.61 |
3.13 |
