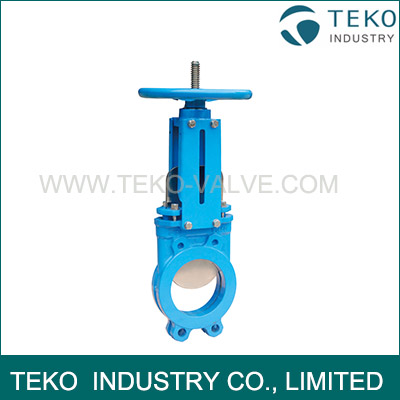

Bi-direction Shutoff Zero Leakage Wafer End Knife Gate Valve

China Bi-direction Shutoff Zero Leakage Wafer End Knife Gate Valve

TEKO new designed knife gate valve is a high performance shut-off valve with superior flow characteristics, offering bi-directional zero leakage shut-off up to 150 psi/10 bar. It is suitable for media such as pulp stock, chemicals, sludge, bio mass, slurry and water. The fully lugged body design is suitable for dead-end services.

Our Knife Gate Valve Supplies with stainless steel wetted parts including the fully lugged valve body, highly polished gate and gland. A smooth cycling and a tight shut-off independent of valve position is achieved by the high strength top works that provide an essential alignment for the gate.

Bi-directional zero leakage shut-off

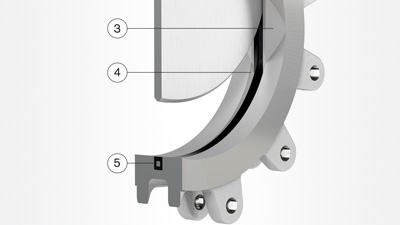

Gate guides (3) support the gate through the entire range of travel. In bottom of the guides, the relief areas (4) promote a self-cleaning, flushing action as the gate moves into the final stage of closure. The perimeter resilient seat provides tight shut-off in both directions. The seat is also reinforced with a stainless steel core (5) to enhance durability.
