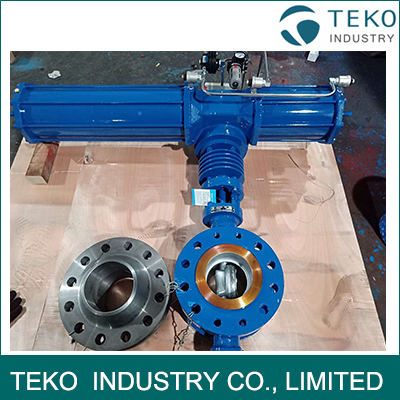

Triple Offset Metal Seated Eccentric Butterfly Valve Pneumatic Operated
Triple Offset Metal Seated Eccentric Butterfly Valve Pneumatic Operated
- Availability: In Stock
- Product Model: D673Y
$0.00
Ex Tax: $0.00
Triple Offset Metal Seated Pneumatic Operated Butterfly Valve
Introductions
Triple-offset butterfly valves offer the best sealing and longest life of all butterfly valve designs. Here are some of the reasons they are chosen:
- For the harsh conditions of critical process applications, steam isolation and temperature extremes, TEKO provide performance reliability and quality.
- The bi-directional zero leakage closure with a metal seat, even after extensive cycling, provides sealing integrity formerly associated only with soft-seated valves.
- Low torque from quarter-turn action permits smaller actuators and lower cost.
- Fire-tested designs per API 607, 5th Edition/ISO 10497-5 are available.
- Compact design means easier installation since valves are lighter and require less pipe bracing.
Features
- Frictionless closure
- Super long usage life
- Double block and bleed
- Blowout-proof stem
- ISO 5211 top flange
- Fire safe design
- Optional stellited seated
Specification
Valve Standards complied with |
Design& manufacture as per | BS EN593 |
| face to face | BS EN558 Series 13 | |
| End flange dimensions | BS EN 1092-1 | |
|
Materials of Main Valve parts |
Body& disc | A216 WCB |
| Seat | SS304 | |
| stem& shaft | SS420 | |
| More about products | working temperature | -29 up to 425 ℃ |
| medium | water, gas, oil, etc | |
| OEM service | acceptable |
** Other materials are also available upon requests.
Where to use
| Curde oil/tank storage | District heating | Pulp and Paper |
| FC crackig unit | Steam and water applications | Hot gass and steam applications |
| Hydro-treating | Gas and oil sotarge tanks | Desalination |
| Hydrogen plant | Petrochemicals | Water Treatment |
| Chemical plants | Tank farms | Waste water |
