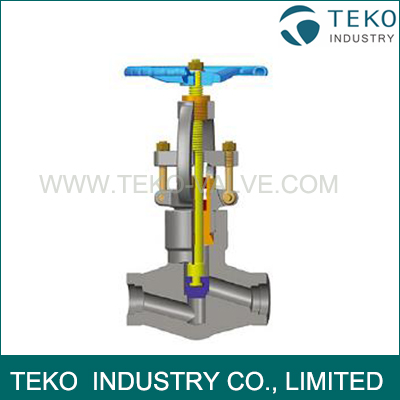

F51 Material PS Pressure Seal High Pressure Globe Valve For Super Heat Steam

F51 Material PS Pressure Seal High Pressure Globe Valve For Super Heat Steam

Product Introduction

Pressure Seal Bonnet Forged Globe Valve-The structure of pressure seal bonnet forged globe valve is simple, so it is easy to be maintain. Opening and closing time is short because of small torque. Pressure seal bonnet forged globe valve has good seal performance, with waterproof, moisture-proof function, and easy to install. It is exported all over the world, widely recognized by our customers.

Features

This pressure seal bonnet forged globe valve features anti-cavitation effect, wear resistance, corrosion resistance, erosion resistance and long service life.

The sealing surface is cemented carbide, which is not easy to wear and scratch.

Small friction on sealing surface.

The valve bonnet is made by integral forging.

Specification

Size: 1/2”-2”

Pressure Rating: Class900-2500LB

Suitable Temperature: -29℃-200℃

Design and Manufacture: BS1873

Ends Connection: Integral/ Welded Flange, Butt Welding, Socket Welding, Thread etc.

Inspection & Testing: BS6755, EN12266

Temperature and Rating: ANSI B16.34

Operator: Bare shaft, Manual, Worm Gear, Electric.

Material

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures.
