Conventional Bore OS & Y Gate Forged Steel Valve
Conventional Bore OS & Y Gate Forged Steel Valve
- Availability: In Stock
- Product Model: Z61Y
$0.00
Ex Tax: $0.00
Outside Stem & Yoke, Forged Steel Bolted & Welded Bonnet Gate Valve; Screwed, SW & BW ends, With Conventional Port, Sizing 1/4” thru 2”
Standard Material
|
Forging Material Body and Bonnet |
Trim Material |
|
A105 |
API Trim 8 |
|
A182 F11 |
API Trim 8 |
|
A182 F22 |
API Trim 8 |
|
A182 F5 |
API Trim 8 |
|
A182 F9 |
API Trim 8 |
|
A182 F316 |
API Trim 12 |
|
A182 F316L |
API Trim 12 |
|
A350 LF2 |
API Trim 8 |
|

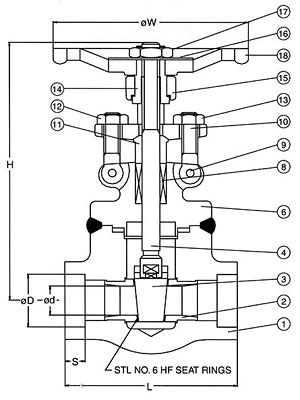

1. |
Body |
|
2. |
Seat Ring |
|
3. |
Disc |
|
4. |
Stem |
|
5. |
Gasket |
|
6. |
Bonnet |
|
7. |
Bonnet Bolt |
|
8. |
Gland Packing |
|
9. |
Eye Bolt Pin |
|
10. |
Eye Bolt |
|
11. |
Gland |
|
12. |
Gland Flange |
|
13. |
Eye Bolt Nut |
|
14. |
Sleeve |
|
15. |
Sleeve Washer |
|
16. |
Name Plate |
|
17. |
Lock Nut |
|
18. |
Hand Wheel |
