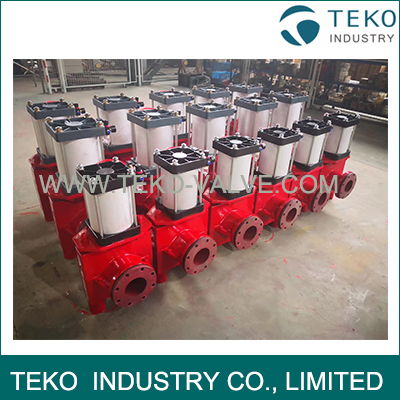

Pneumatic Actuated Viton Sleeve Slurry Pinch Valve For Mining Nonstandard

Pneumatic Actuated Viton Sleeve Slurry Pinch Valve For Mining Application

Design

Pinch Valve is a completely enclosed, actuated control valve. Its reliable, maintenance-free design is suited for tough slurries, abrasives, corrosive chemical applications, effluent unit.

TEKO pneumatic Control Pinch Valve is a long-lasting, flexible rubber sleeve, available in a wide variety of elastomers suitable for any application. With its excellent control characteristics, these valves can be used as a throttling control valve.

Specification

• SIZE 15MM TO 400MM –
• PRESSURE UPTO 25 BAR – IN CLOSED & OPEN POSITION
• CYLINDER OPERATED PINCH VALVES
• Option – I 2 P CONVERTOR ALONG WITH POSITIONER- 4 TO 20 MA
• MANUAL OVER RIDE

Features:

• Streamlined centerline closure
• Tight shut-off even on trapped solids
• Built-in over-pinch protection
• High cycle life, repeatable control
• Positive opening tabs standard on all sleeves
• Full, flat-faced reinforced rubber flanges, eliminates need for gaskets
• Face-to-face equal to industry
• Standard maintenance-free pneumatic actuator
