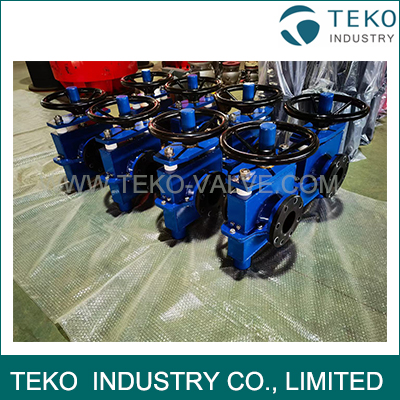

Isolation Service High Strength Polyester Cord Pinch Hose Valve For Mining Tail

Isolation Service High Strength Polyester Cord Pinch Hose Valve For Mining Tail

About Pinch Hose Valve

The sealing in TEKO pinch valves is achieved throttling the flexible tube of the valve named elastic sleeve which is the only part in contact with the medium.

Pinch valves are suitable for handling slurries and solids in suspension, avoiding contact with the valve mechanism and any contamination towards or from the environment.

Method of Control

Pinch valves use a liner motion method of control. The disc is a flexible material liner, similar to a diaphragm. The stem of the pinch valve has a free-moving connection to a moving closure bar, called a compressor, which is located directly above the liner. As the handwheel is turned, the compressor lowers the liner to squeeze the liner against the bottom support to close the valve. The pressure of the media in the valve can help in starting or stopping the flow.

Benefits

100% tight shut off even with the particle-containing fluid.

Full bore Ensure free flow of medium and less pumping energy is needed

Sleeve is the only replaceable part and can be changed easily on site.

High corrosion resistance and flexible sleeve

Material of sleeve according to the process conditions

Material Selection
