Rubber Sleeve Automated Slurry Pinch Valve , Pneumatic Pinch Valve For Iron And Steel
- Availability: In Stock
- Product Model: GJ41X

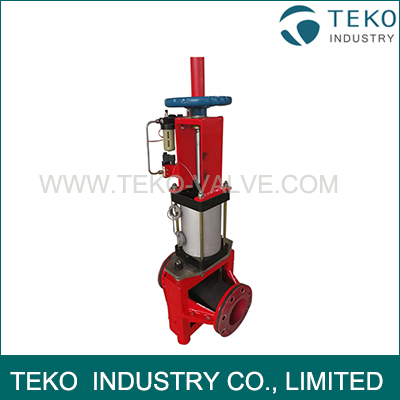

Rubber Sleeve Automated Pneumatic Actuated Slurry Pinch Valve For Iron And Steel
Description
TEKO pneumatic actuated pinch valve is a ideal solutions where shut-off and control applications involve abrasive or corrosive slurries, powders or coarse substances.
Customized flow control solutions precisely upon the working condition of fluid to handle.
Comprehensive sizing and selection service.
Low cost maintenance and long service life – the inside sleeve is the only replaceable part.
Reduced total cost of ownership
Benefits
100% tight shut off even with the particle-containing fluid.
Full bore Ensure free flow of medium and less pumping energy is needed
Sleeve is the only replaceable part and can be changed easily on site.
High corrosion resistance and flexible sleeve
Material of sleeve according to the process conditions
Material Selection
| Body | Carbon steel, cast iron Aluminum, plasltic |
| Stem & Pinch bar | carbon steel, 40Cr or SS |
| Stud | Corrosion resistant 8.8 class |
| Match flange | Carbon Steel |
| Sleeve Material | Natural Rubber, NBR, EPDM, etc |
