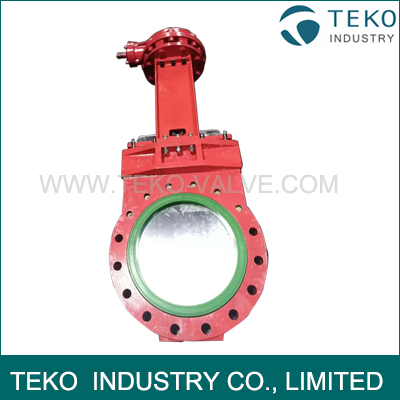

Bi-directional Bubble Tight Urethane PU Full Lined Splited Body High Abrasion Knife Gate Valve
- Availability: In Stock
- Product Model: PZ73U
Bi-directional Bubble Tight Urethane PU Full Lined Splited Body High Abrasion Knife Gate Valve
About Knife Valve
The TEKO knife valve is new designed valve upon years of experiences. It features robust body polyurethane liner molded throughout the body and chest for reliable service in abrasive and corrosive applications.
Features
Design for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.
Standard multi-layer square packing provides exceptional gland sealing.
Polyurethane body liner is rated up to 90℃ and completely protects valve body from abrasive line media.
Deflection resistant gate design ensures consistent alignment for industry leading durability.
Standard Construction
|
Bodo |
Gate |
Liner |
Stem |
Gland |
Packing |
Topworks |
|
DI |
SS304 |
Polyurethane |
SS304 |
DI |
PTFE |
Steel |
Other materials are available upon request
Standard & Specification
|
Size |
2"~24" |
Design |
Mill Standard |
|
Pressure |
10 bars |
Testing |
MSS SP-81 |
|
Body: |
Splited body |
Drilling |
ASME B16.5 |
