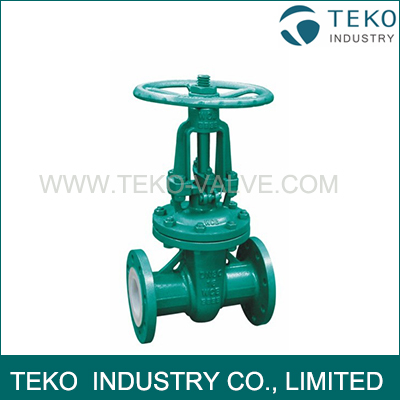

DN150 Class 150Lb Anti-corrosion PTFE Lined Gate

DN150 Class 150Lb Anti-corrosion PTFE Lined Gate

Technical Data

Design Standard: API 600 / ASME B16.34
Face-to-face dimension: ASME B 16.10
Flange End: ASME B 16.5
Inspection & Testing: API 598

Features

1. TEKO Gate valve can be divided into rising stem gate valve, which refers to the disc doing lift movement in straight line along with the valve stem, and non-rising stem gate valve which refers to the stem nut located in the disc, when the stem rotates, the disc doing lift movement in straight line.
2. TEKO gate valve adopts new design structure, solving the inconvenient or jammed operation phenomenon caused by particles, fibers and medium deposition in the screw groove of common non-rising gate valve.
3. Any direction installation is preferred.
4. It can sustain any corrosive medium in addition to the molten alkali metals and fluorine elements. It is ideal products used in chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc.
5. Lining material: PTFE, PFA, FEP etc.
6. Operation methods: manual as standard, and worm gear, electric, pneumatic and hydraulic actuator upon request
7. TEKO Fluorine lined gate valves are available as per the needs of applications in additional sizes and other than standard materials.

Material List:
