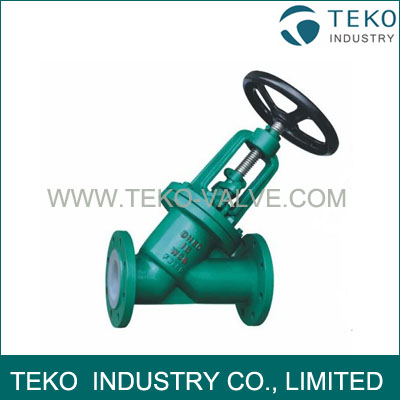

Y Type Globe Valve PTFE Lining
Y Type Globe Valve PTFE Lining
- Availability: In Stock
- Product Model: J45F46
$0.00
Ex Tax: $0.00
Y Type Globe Valve PTFE Lining
Specifications:
1)Material:WCB Lined PTFE
2)Size rating:NPS 1/2"~12"
3)Working Pressure: PN 0.6~2.5MPa
4)DESIGN Standard:GB 12233
5)FACE TO FACE Standard:GB12221
6) Flange End:ANSI B16.5a, JB78/79
7)TEST Standard:API 598, GB/T12252
Material List:
| NO. | Parts Name | Material | |||
| Cast Iron | WCB | CF8 | CF8M | ||
| 1 | Body,Bonnet | HT250 | WCB | CF8 | CF8M |
| 2 | Disc,Stem | 35 | 1Cr13 | 1Cr17Ni2 | 1Cr17Ni2 |
| 3 | Liner,Seat | PTFE, PCTFE, FEP, PFA, PO | |||
| 4 | Packing | PTFE | |||
| 5 | Handle | HT200 | |||
