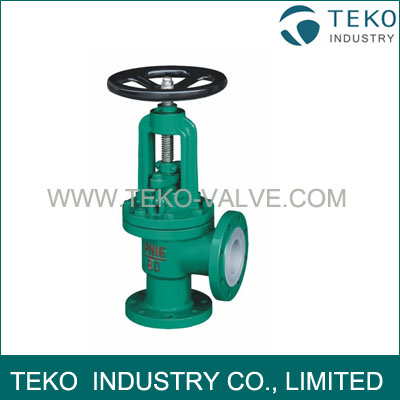

Full lining Angle Type Globe Valve
Full lining Angle Type Globe Valve
- Availability: In Stock
- Product Model: J44F46
$0.00
Ex Tax: $0.00
Full lining Angle Type Globe Valve
Specifications:
1)Material:WCB Lined PTFE
2)Size rating:NPS 1"~8"
3)Working Pressure:Class 150 Lb, JIS 10K
4)DESIGN Standard:GB 12233
5)FACE TO FACE Standard:ASME 16.10,GB 12221
6) Flange End:ANSI B16.5a, JB78/79
7)TEST Standard:API 598
Material List:
| NO. | Parts Name | Material | |||
| Cast Iron | WCB | CF8 | CF8M | ||
| 1 | Body,Bonnet | HT250 | WCB | CF8 | CF8M |
| 2 | Disc,Stem | 35 | 1Cr13 | 1Cr17Ni2 | 1Cr17Ni2 |
| 3 | Liner,Seat | PTFE, PCTFE, FEP, PFA, PO | |||
| 4 | Packing | PTFE | |||
| 5 | Handle | HT200 | |||
