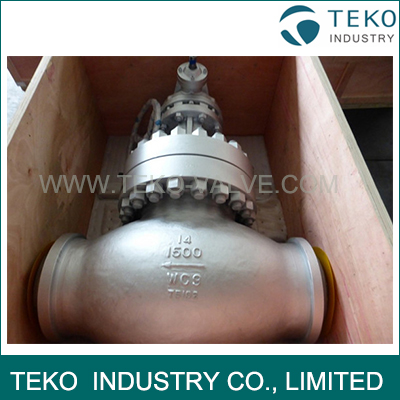

A216 WCB Carbon Steel Body Flanged End BS 1873 Globe Valve Plug Type Disc 150Lb ~ 2500Lb
- Availability: In Stock
- Product Model: J41Y

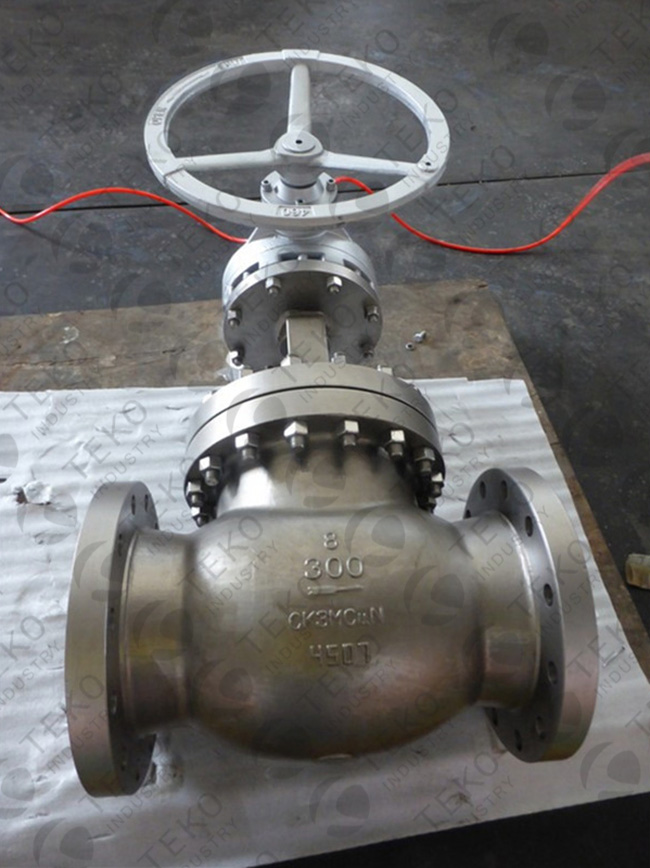

A216 WCB Carbon Steel Body Flanged End Globe Valve Plug Type Disc 150Lb~2500Lb
ABOUT API GLOBE VALVES
TEKO Cast Steel Globe Valves offer dependable service as regulating or shut off valves for steam, air, gas, oil, oil vapor and high pressure installations. Bolted bonnet for low to medium pressures, whereas pressure seal bonnet is recommended for the highest class
Delivered in a wide range of carbon and stainless steel material. Additional these valves can be manufactured in non-ferrous alloys such as aluminum bronze etc. They are available in the standard API trims or other as per client specification.
MAUFACTURING RANGE
Size: DN2” o DN24”
Class 150# to Class 2500#
DESIGN FEATURES
RF, RTJ or BW
Bolted or pressure seat bonnet
Integral, welded or threaded seat rings.
DESIGN STANDARDS
Design & manufacture according to BS 1873
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B15.25(BW)
Test & Inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
