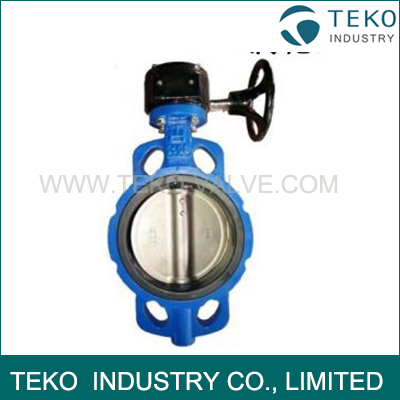

JIS F 7480D Cast Iron Shut-off Gear Operation Marine Butterfly Valve

JIS F 7480D Cast Iron Shut-off Gear Operation Marine Butterfly Valve
JIS F 7480D Cast Iron Shut-off Gear Operation Marine Butterfly Valve
  • Availability: In Stock
  • Product Model: D371X
0 Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Product Inquiry
Add to Wish List Compare this Product

JIS F 7480D Cast Iron Shut-off Gear Operation Marine Butterfly Valve

Marine Butterfly Valves are well proven within the marine industry and can be found onboard ship where critical applications demand maximum reliability.

Valves are manufactured to meet marine approval standards and can be operated manually via lever or gearbox, or actuated (electric or pneumatic).



Specifications



Product Model

TED371XT-5K/10K

Nominal Size

DN40-DN600

Nominal Pressure

JIS 5K/JIS 10K/PN10/PN16

Applicable Medium

Water,Seawater,Hot-water,Steam,Oil,Corrosive, Media,Gas and so on.

Applicable Temperature

-23℃-120℃

Material

Valve Body: Cast Iron,Ductile Cast Iron,Cast Steel,Stainless Steel,Aluminum Bronze
Valve Disc:SS304,SS316,SS316L,AL-Bronze,Lining Rubber
Valve Seat:NBR,EPR,Fluorine Rubber,PTFE

Valve Spindle&Shaft: Carbon Steel /Stainless Steel



Pressure Rating

Pressure

5K

10K

Body

1.05 Mpa

2.06 Mpa

Seat

0.76 Mpa

1.46 Mpa
